• SNR EXFE214 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFE214-SNR

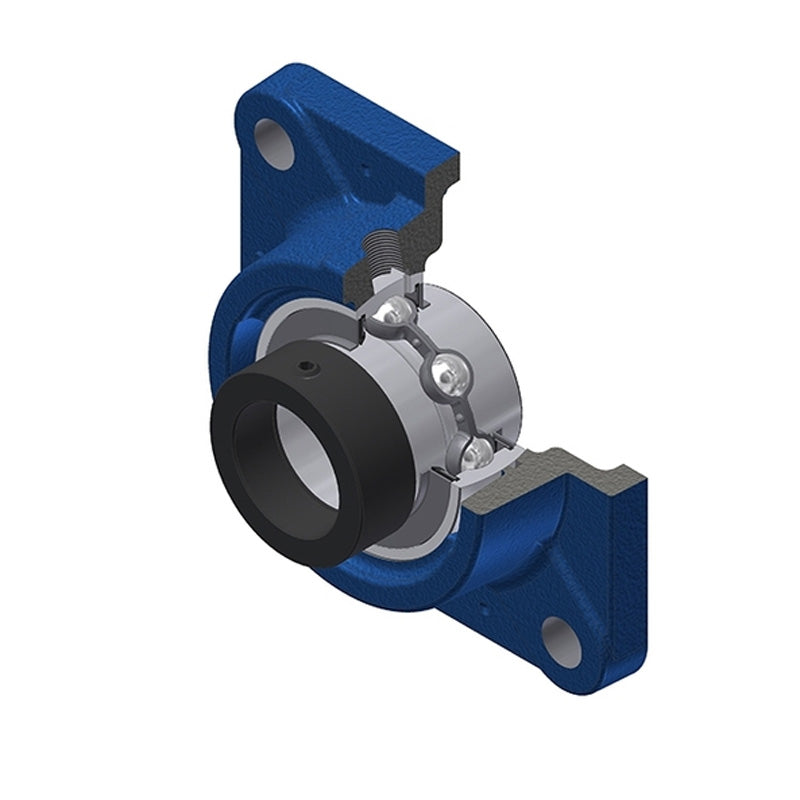

SNR EXFE214 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE214 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
$149.43 ex VAT
$149.43 ex VAT
Sale Sold out

In stock

Price Break
3+ $100.09
4+ $94.46
9+ $93.34
19+ $92.21
49+ $91.09
99+ $89.96
499+ $84.34
999+ $83.22
1999+ $82.09
2999+ $80.97
4999+ $78.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
70mm
Style:
EXFE
Bolt Hole Centres:
150mm
Technical
--- Dimensions
Shaft diameter 70mm
A 56mm
A1 18mm
A2 89.6mm
B 68.2mm
B1 85.7mm
d1 96.8mm
e 38mm
J 150mm
L 188mm
N 18mm
S 34.1mm
G R1/8″
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 6.65 kg
