• SNR EXFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFE215-SNR

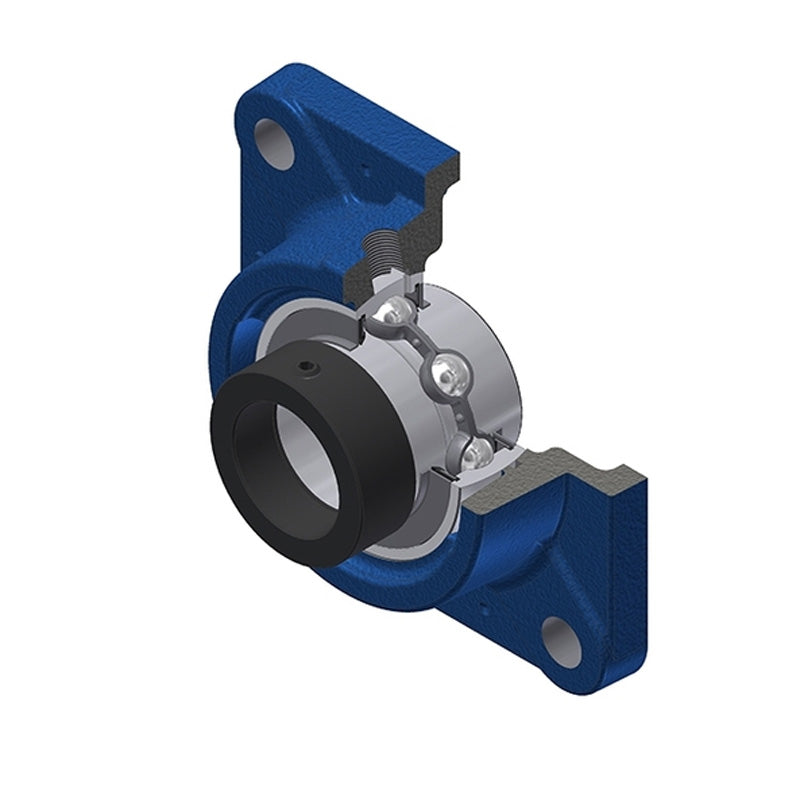

SNR EXFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFE215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
$183.57 ex VAT
$183.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $122.96
4+ $116.05
9+ $114.67
19+ $113.29
49+ $111.91
99+ $110.53
499+ $103.62
999+ $102.24
1999+ $100.86
2999+ $99.47
4999+ $96.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
75mm
Style:
EXFE
Bolt Hole Centres:
153mm
Technical
--- Dimensions
Shaft diameter 75mm
A 59mm
A1 20mm
A2 96.1mm
B 74.6mm
B1 92.1mm
d1 102mm
e 41.3mm
J 153mm
L 197mm
N 23mm
S 37.3mm
G R1/8″
--- Load rating
Dynamic load C 66 kN
Static load C0 49.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 6.89 kg
