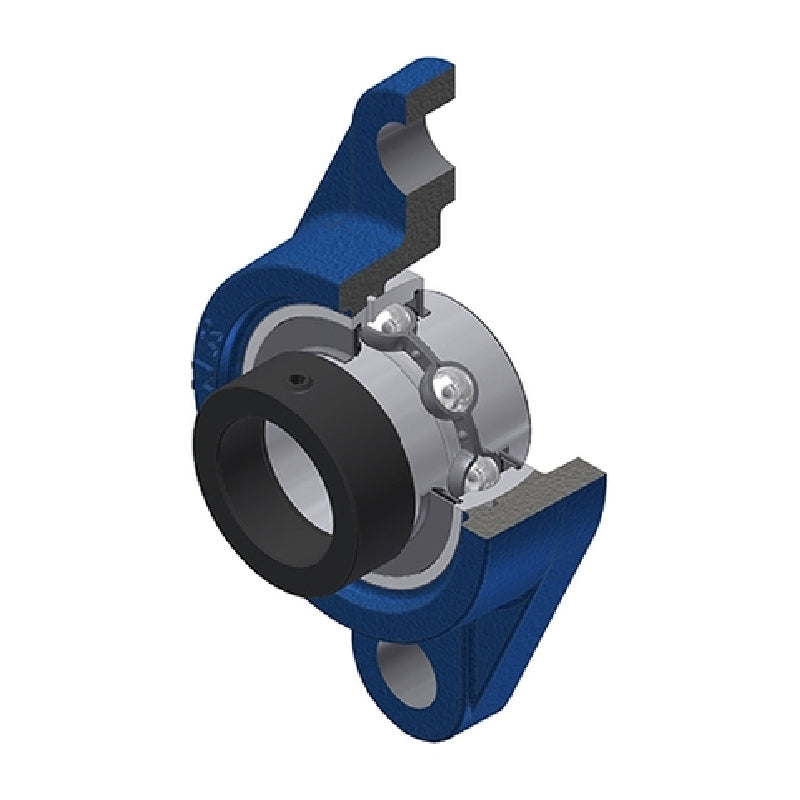

• SNR EXFL205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFL205-SNR

SNR EXFL205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFL205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
$39.85 ex VAT
$39.85 ex VAT
Sale Sold out

In stock

Price Break
3+ $26.69
4+ $25.19
9+ $24.89
19+ $24.59
49+ $24.29
99+ $23.99
499+ $22.49
999+ $22.19
1999+ $21.89
2999+ $21.59
4999+ $20.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXFL
Bolt Hole Centres:
99mm
Technical

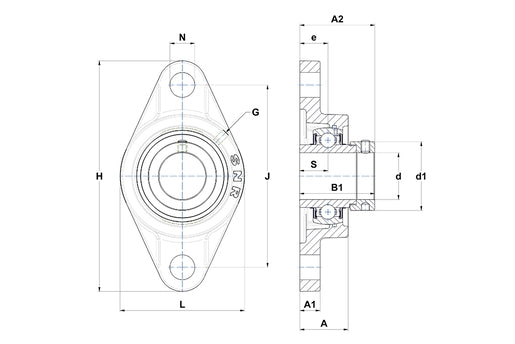

--- Dimensions
Shaft diameter d 25mm
A 27mm
A1 13mm
A2 42.9mm
B 34.8mm
B1 44.3mm
d1 37.4mm
e 16mm
H 130mm
J 99mm
L 68mm
N 16mm
S 17.4mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.66 kg
