SKU: EXFL210N-SNR

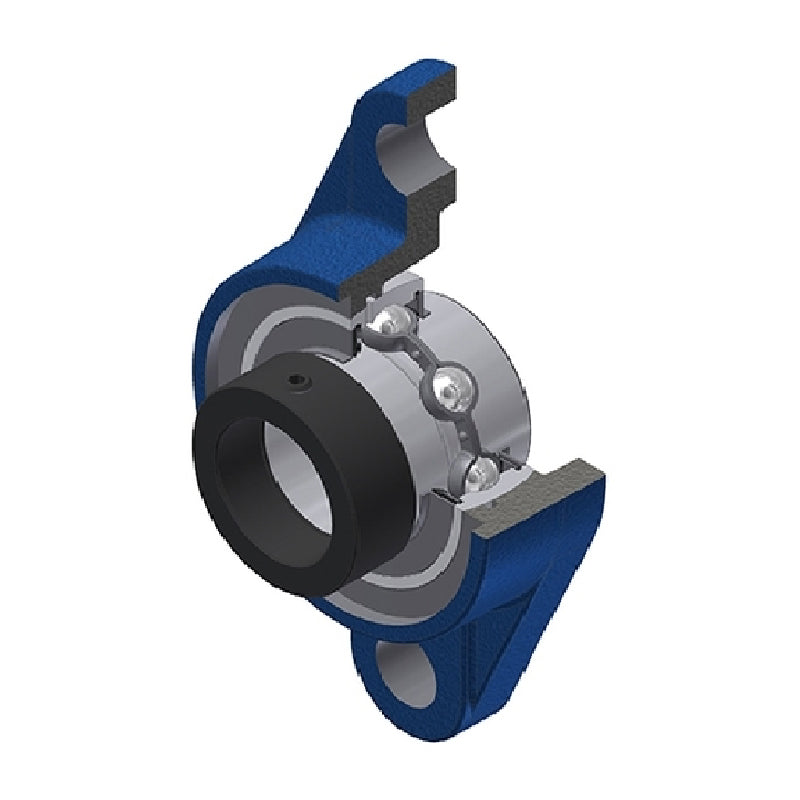

SNR EXFL210N Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFL210N Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price $103.10 ex VAT
Regular price Sale price $103.10 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.80
4+ $73.70
9+ $72.15
19+ $69.82
49+ $68.27
99+ $64.39
499+ $54.31
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 16mm
A2 60.1mm
B 49.2mm
B1 62.7mm
d1 67.2mm
e 22mm
H 197mm
J 157mm
L 115mm
N 19mm
S 24.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.34 kg
