SKU: EXFL217-SNR

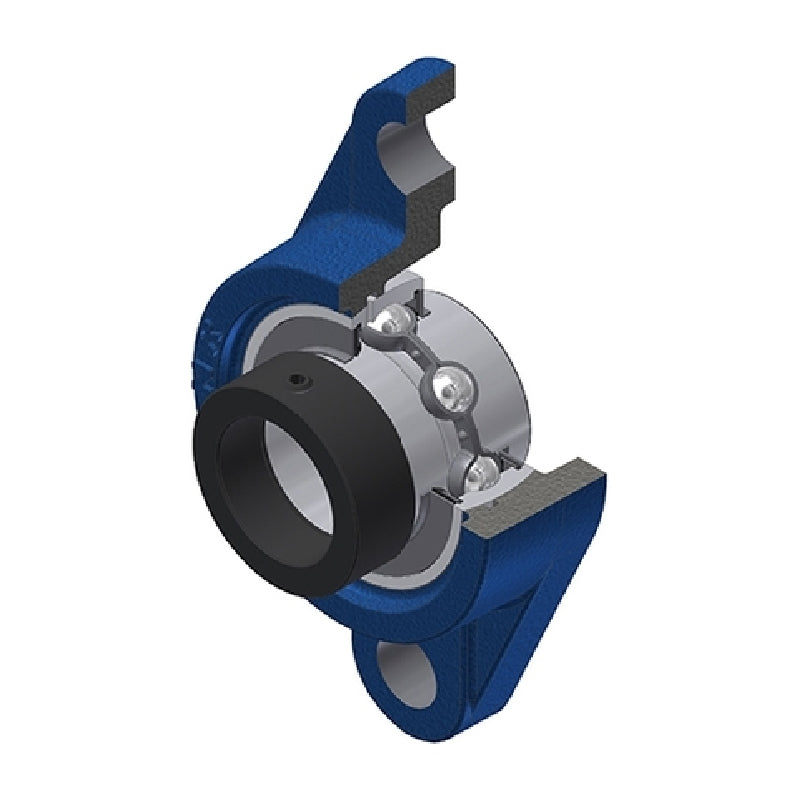

SNR EXFL217 Metric Two Bolt Cast Iron Oval Housing with 85mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL217 Metric Two Bolt Cast Iron Oval Housing with 85mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$383.07
ex VAT
Regular price
Sale price
$383.07
ex VAT
In stock
Price Break
3+
$285.38
4+
$273.85
9+
$268.08
19+
$259.43
49+
$253.67
99+
$239.26
499+
$201.78
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 85mm
- Style:
- EXFL
- Bolt Hole Centres:
- 248mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 85mm |
| A | 63mm |
| A1 | 22mm |
| A2 | 85.8mm |
| B | 53.2mm |
| B1 | 73.2mm |
| d1 | 119mm |
| e | 36mm |
| H | 305mm |
| J | 248mm |
| L | 190mm |
| N | 25mm |
| S | 23.4mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 83.2 kN |
| Static load C0 | 63.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 8.8 kg |
