SKU: EXFL308-SNR

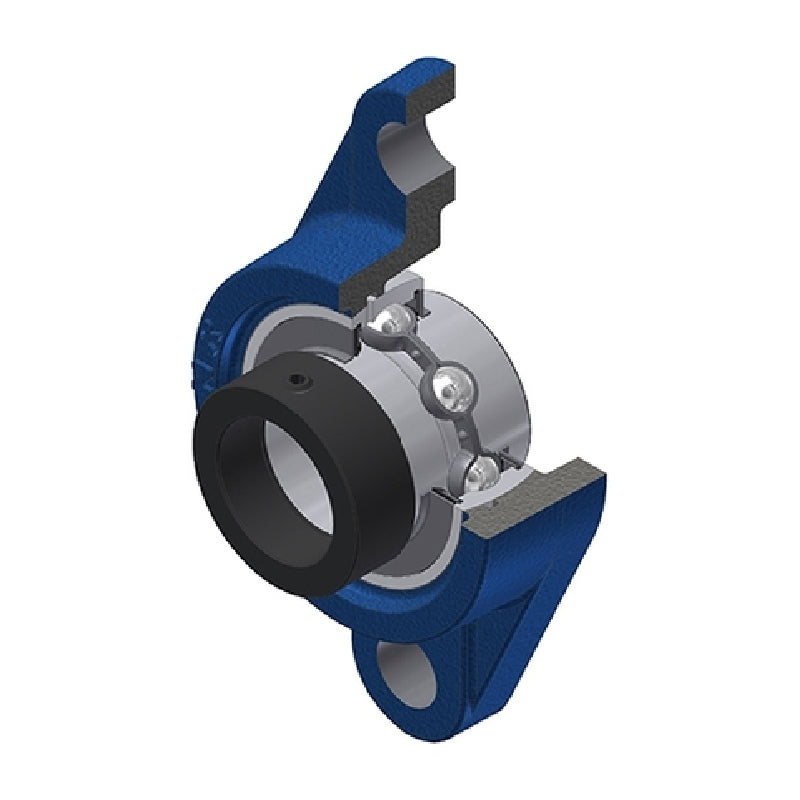

SNR EXFL308 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFL308 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price $117.78 ex VAT
Regular price Sale price $117.78 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.74
4+ $84.20
9+ $82.43
19+ $79.77
49+ $77.99
99+ $73.56
499+ $62.04
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 40mm
A1 17mm
A2 60.3mm
B 41.3mm
B1 57.1mm
d1 63.5mm
e 23mm
H 200mm
J 158mm
L 112mm
N 23mm
S 19.8mm
G M6x1
--- Load rating
Dynamic load C 40.56 kN
Static load C0 24 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.31 kg
