SKU: EXFL311-SNR

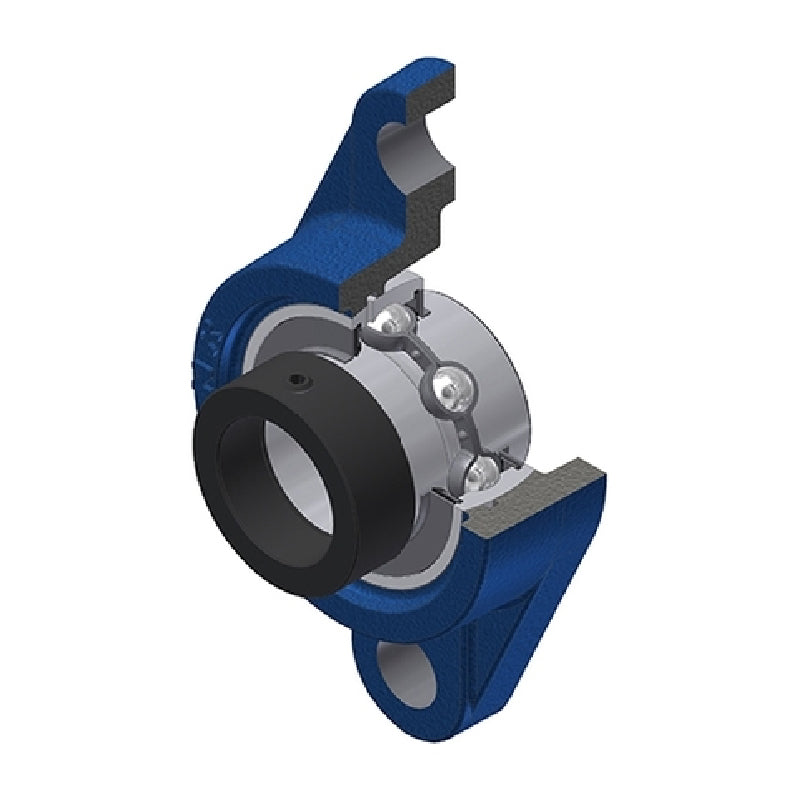

SNR EXFL311 Metric Two Bolt Cast Iron Oval Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL311 Metric Two Bolt Cast Iron Oval Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$206.24
ex VAT
Regular price
Sale price
$206.24
ex VAT
In stock
Price Break
3+
$153.65
4+
$147.44
9+
$144.34
19+
$139.68
49+
$136.58
99+
$128.82
499+
$108.64
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFL300 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXFL
- Bolt Hole Centres:
- 198mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 52mm |
| A1 | 20mm |
| A2 | 75.2mm |
| B | 55.6mm |
| B1 | 73mm |
| d1 | 83mm |
| e | 30mm |
| H | 250mm |
| J | 198mm |
| L | 150mm |
| N | 25mm |
| S | 27.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.96 kg |
