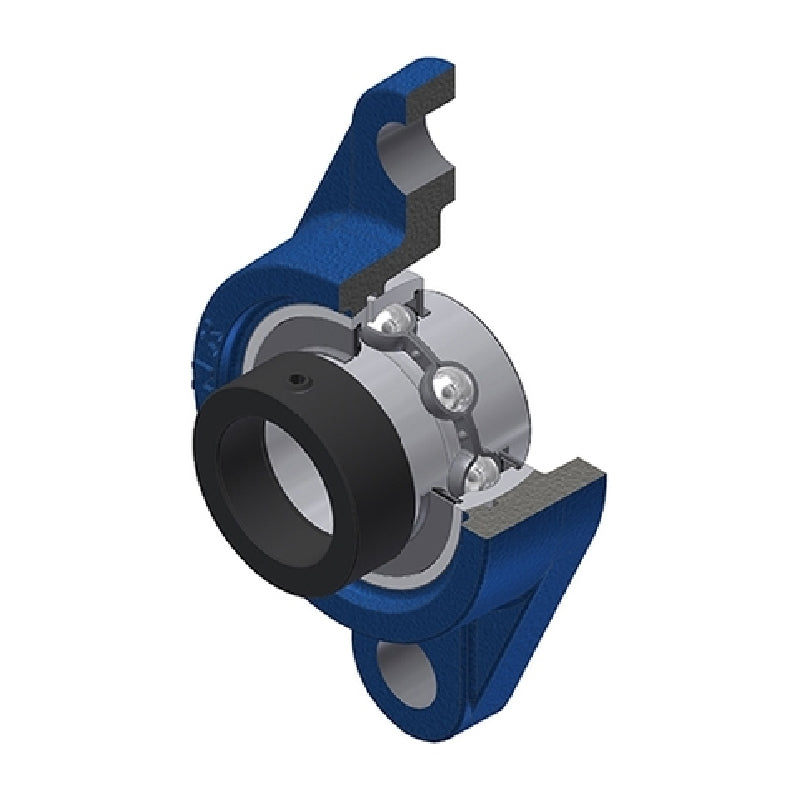

SNR EXFL314 Metric Two Bolt Cast Iron Oval Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL314 Metric Two Bolt Cast Iron Oval Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$382.89
ex VAT
Regular price
Sale price
$382.89
ex VAT
In stock
Price Break
3+
$285.25
4+
$273.72
9+
$267.96
19+
$259.32
49+
$253.55
99+
$239.15
499+
$201.69
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFL300 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- EXFL
- Bolt Hole Centres:
- 250mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 61mm |
| A1 | 28mm |
| A2 | 93.95mm |
| B | 68.3mm |
| B1 | 92.1mm |
| d1 | 102mm |
| e | 36mm |
| H | 315mm |
| J | 250mm |
| L | 185mm |
| N | 35mm |
| S | 34.15mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 104.26 kN |
| Static load C0 | 68 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 9.22 kg |
