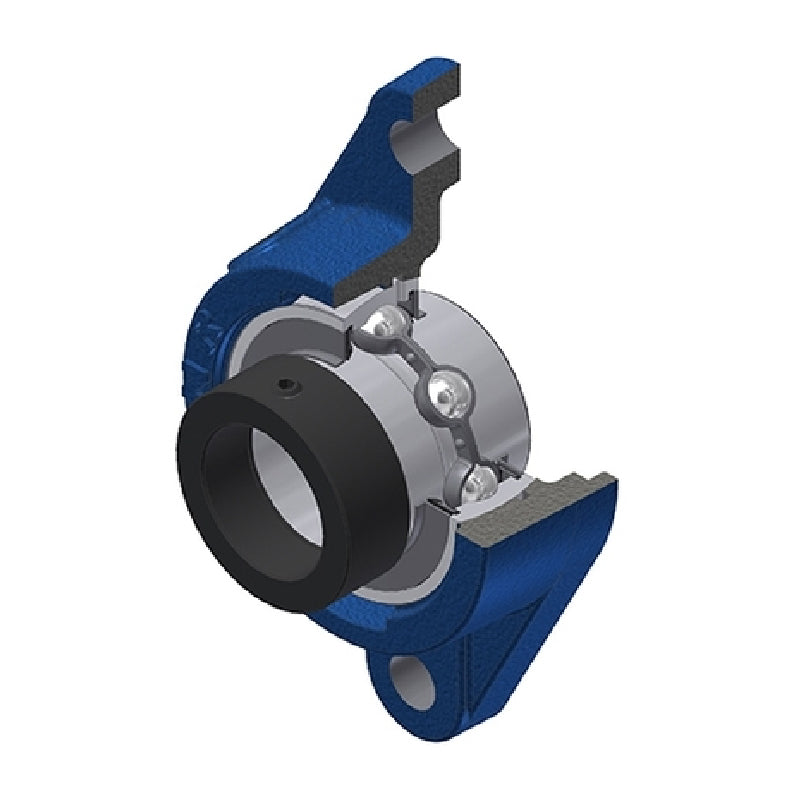

• SNR EXFLE205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFLE205-SNR

SNR EXFLE205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLE205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
$34.15 ex VAT
$34.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $22.88
4+ $21.59
9+ $21.33
19+ $21.08
49+ $20.82
99+ $20.56
499+ $19.28
999+ $19.02
1999+ $18.76
2999+ $18.51
4999+ $17.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXFLE
Bolt Hole Centres:
99mm
Technical

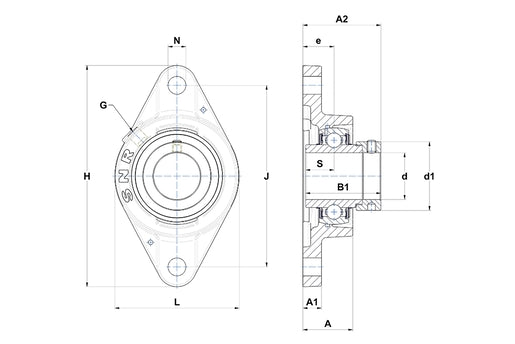

--- Dimensions
Shaft diameter d 25mm
A 29.3mm
A1 11mm
A2 45.9mm
B 34.8mm
B1 44.3mm
d1 37.4mm
e 19mm
H 124mm
J 99mm
L 70mm
N 11.5mm
S 17.4mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.65 kg
