SKU: EXFLE206-19-SNR

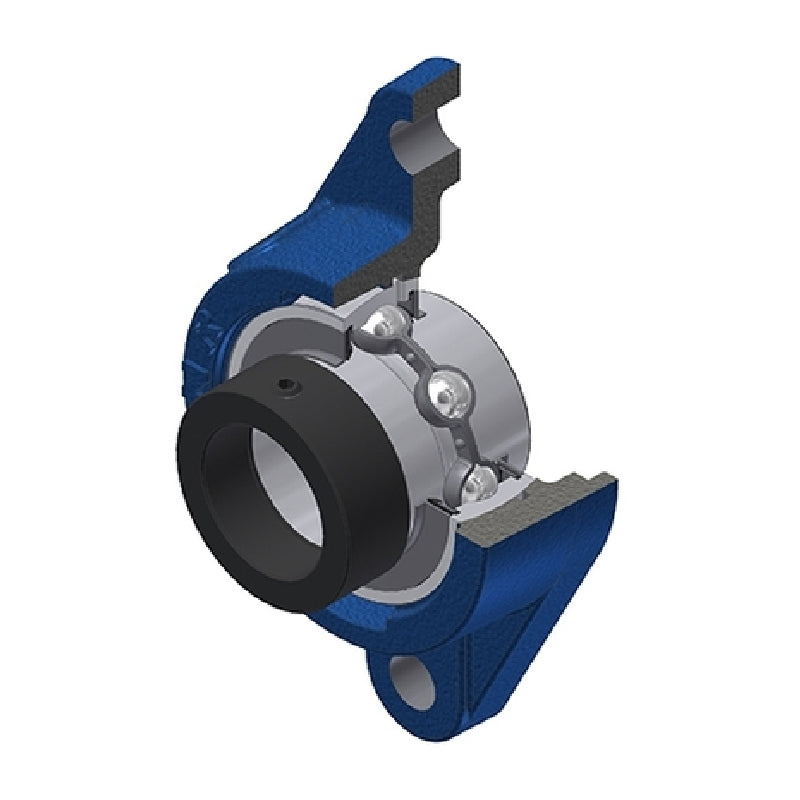

SNR EXFLE206-19 Imperial Two Bolt Cast Iron Oval Housing with 1-3/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFLE206-19 Imperial Two Bolt Cast Iron Oval Housing with 1-3/16 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$47.10
ex VAT
Regular price
Sale price
$47.10
ex VAT
In stock
Price Break
3+
$35.09
4+
$33.67
9+
$32.96
19+
$31.90
49+
$31.19
99+
$29.42
499+
$24.81
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- EXFLE
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-3/16 inch |
| A | 32.1mm |
| A1 | 12mm |
| A2 | 50.1mm |
| B | 36.4mm |
| B1 | 48.3mm |
| d1 | 44.1mm |
| e | 20mm |
| H | 142mm |
| J | 116.5mm |
| L | 80mm |
| N | 11.5mm |
| S | 18.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 0.9 kg |
