SKU: EXFLE206T20-SNR

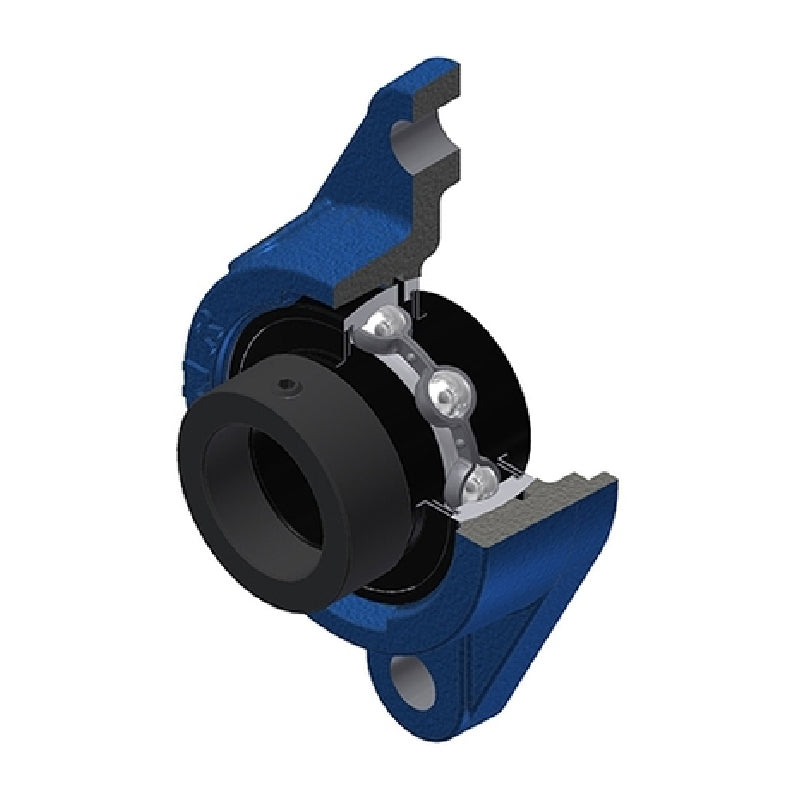

SNR EXFLE206T20 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days

SNR EXFLE206T20 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days
Regular price $132.52 ex VAT
Regular price Sale price $132.52 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.72
4+ $94.73
9+ $92.74
19+ $89.75
49+ $87.75
99+ $82.77
499+ $69.80
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 30mm
A 32.1mm
A1 12mm
A2 50.1mm
B 36.4mm
B1 48.3mm
d1 44.1mm
e 20mm
H 142mm
J 116.5mm
L 80mm
N 11.5mm
S 18.2mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.91 kg
