SKU: EXFLE210T20-SNR

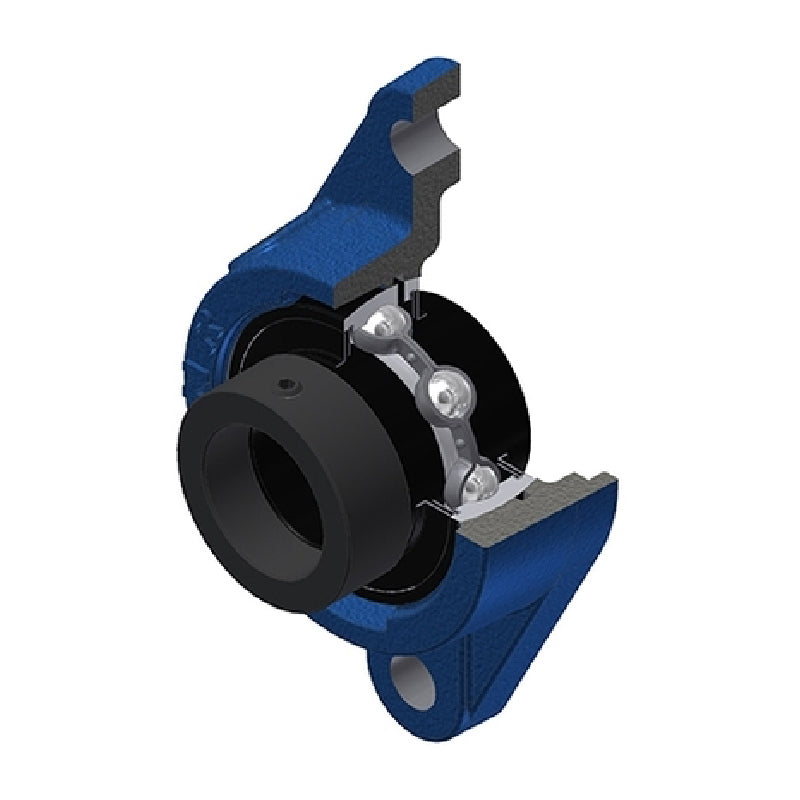

SNR EXFLE210T20 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days

SNR EXFLE210T20 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days
Regular price $206.10 ex VAT
Regular price Sale price $206.10 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.54
4+ $147.34
9+ $144.23
19+ $139.58
49+ $136.48
99+ $128.72
499+ $108.56
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 41.6mm
A1 13mm
A2 66.1mm
B 49.2mm
B1 62.7mm
d1 67.2mm
e 28mm
H 190mm
J 157mm
L 116mm
N 18mm
S 24.6mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.31 kg
