SKU: EXFLE213-SNR

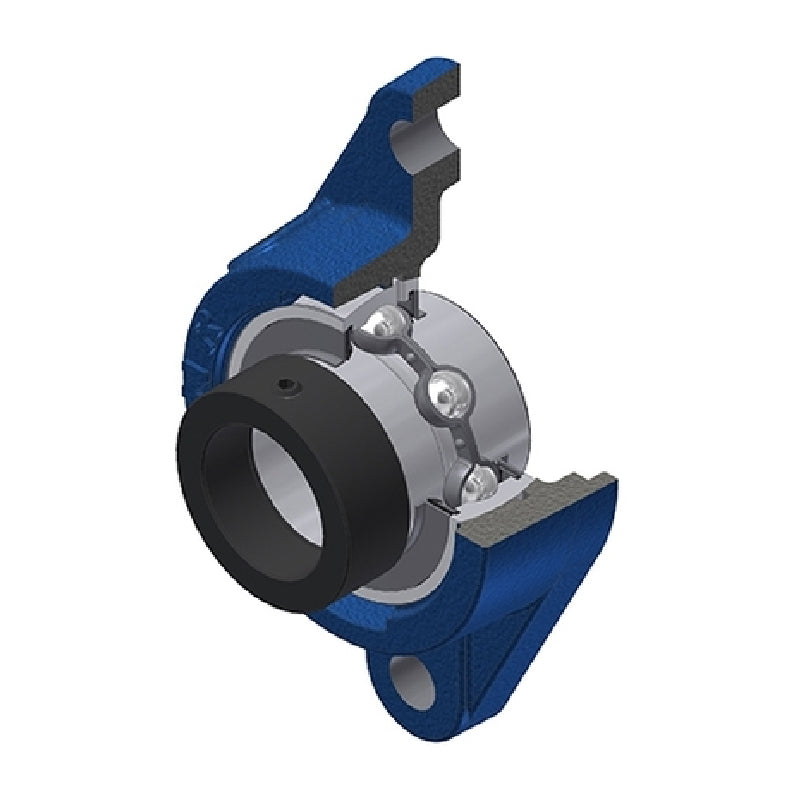

SNR EXFLE213 Metric Two Bolt Cast Iron Oval Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFLE213 Metric Two Bolt Cast Iron Oval Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$176.76
ex VAT
Regular price
Sale price
$176.76
ex VAT
In stock
Price Break
3+
$131.68
4+
$126.36
9+
$123.70
19+
$119.71
49+
$117.05
99+
$110.40
499+
$93.11
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- EXFLE
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 57mm |
| A1 | 18mm |
| A2 | 89.6mm |
| B | 68.2mm |
| B1 | 85.7mm |
| d1 | 86mm |
| e | 38mm |
| H | 258mm |
| J | 216mm |
| L | 160mm |
| N | 21mm |
| S | 34.1mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.11 kg |
