SKU: EXFLE215L3-SNR

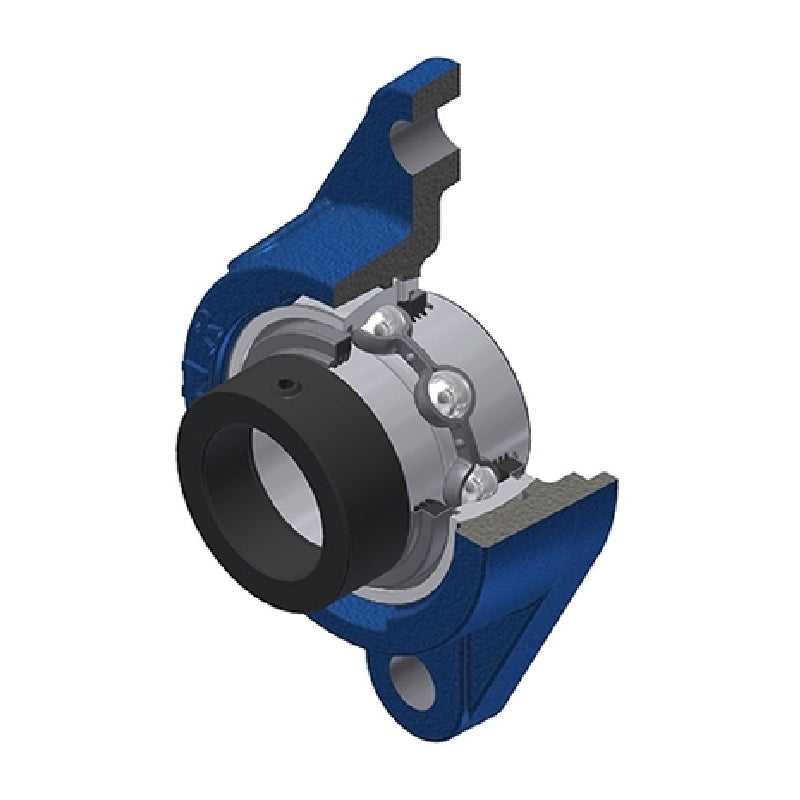

SNR EXFLE215L3 Metric Two Bolt Cast Iron Oval Housing with 75mm Bore Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days
SNR EXFLE215L3 Metric Two Bolt Cast Iron Oval Housing with 75mm Bore Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
$353.61
ex VAT
Regular price
Sale price
$353.61
ex VAT
In stock
Price Break
3+
$263.43
4+
$252.79
9+
$247.46
19+
$239.48
49+
$234.16
99+
$220.85
499+
$186.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- EXFLE
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 57mm |
| A1 | 18mm |
| A2 | 92.8mm |
| B | 74.6mm |
| B1 | 92.1mm |
| d1 | 102mm |
| e | 38mm |
| H | 258mm |
| J | 216mm |
| L | 160mm |
| N | 21mm |
| S | 37.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 5.84 kg |
