SKU: EXFLZ206-SNR

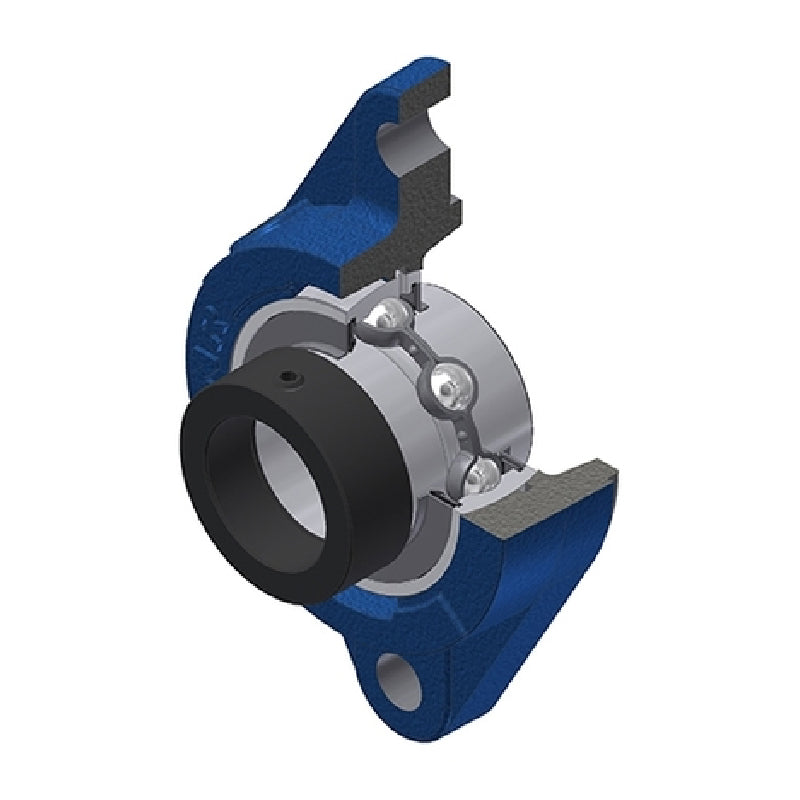

SNR EXFLZ206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLZ206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price $58.87 ex VAT
Regular price Sale price $58.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $43.86
4+ $42.09
9+ $41.20
19+ $39.87
49+ $38.98
99+ $36.77
499+ $31.01
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 30mm
A 30mm
A1 12mm
A2 47.1mm
A4 27mm
B 36.4mm
B1 48.3mm
d1 44.1mm
e 17mm
H 142mm
H3 80mm
J 116.5mm
L 83mm
N 11.5mm
S 18.2mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.01 kg
