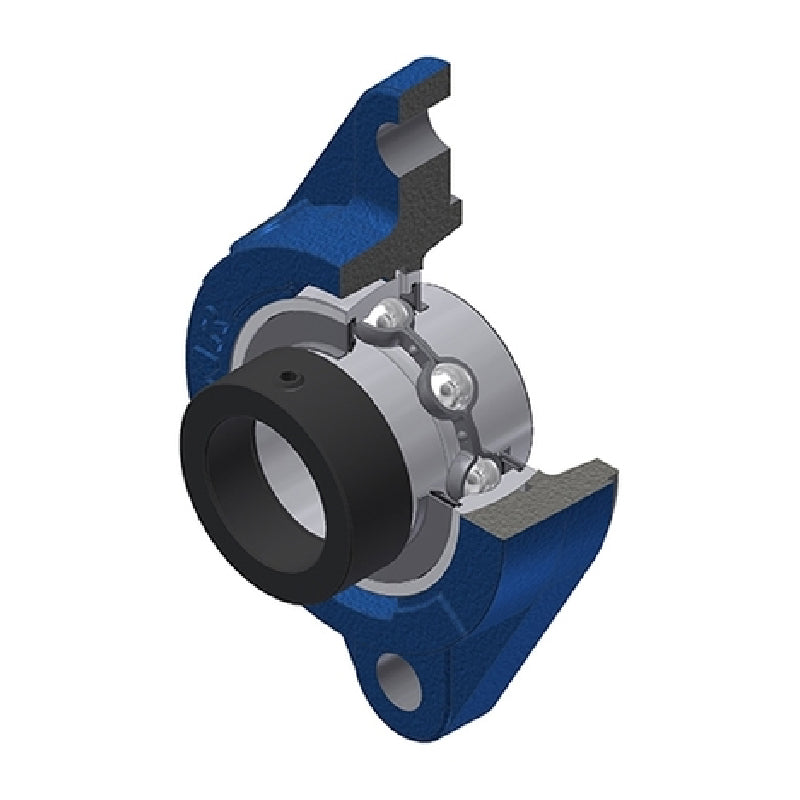

• SNR EXFLZ207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXFLZ207-SNR

SNR EXFLZ207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLZ207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
4+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
99+ $32.39
499+ $30.36
999+ $29.96
1999+ $29.55
2999+ $29.15
4999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
EXFLZ
Bolt Hole Centres:
130mm
Technical
--- Dimensions
Shaft diameter d 35mm
A 32.5mm
A1 12.5mm
A2 49.3mm
A4 28.5mm
B 37.6mm
B1 51.1mm
d1 51.1mm
e 17mm
H 155mm
H3 90mm
J 130mm
L 94mm
N 14mm
S 18.8mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.4 kg
