SKU: EXFLZ209-SNR

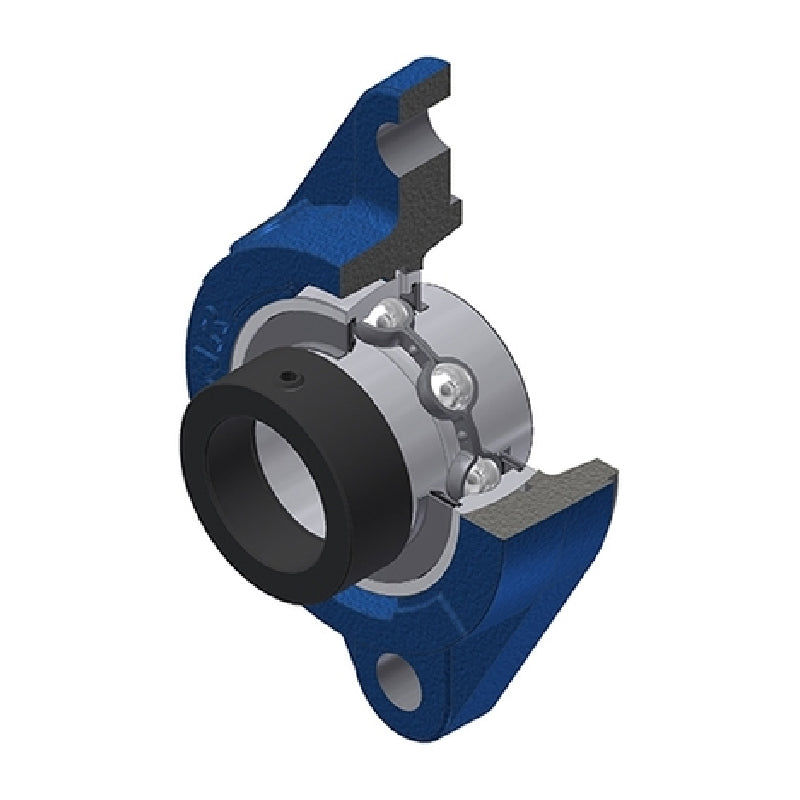

SNR EXFLZ209 Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLZ209 Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price $88.34 ex VAT
Regular price Sale price $88.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.82
4+ $63.16
9+ $61.83
19+ $59.83
49+ $58.50
99+ $55.18
499+ $46.54
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 45mm
A 36.5mm
A1 13mm
A2 54.9mm
A4 32.5mm
B 42.8mm
B1 56.3mm
d1 62mm
e 20mm
H 180mm
H3 105mm
J 148.5mm
L 111mm
N 14mm
S 21.4mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.07 kg
