SKU: EXP205T20-SNR

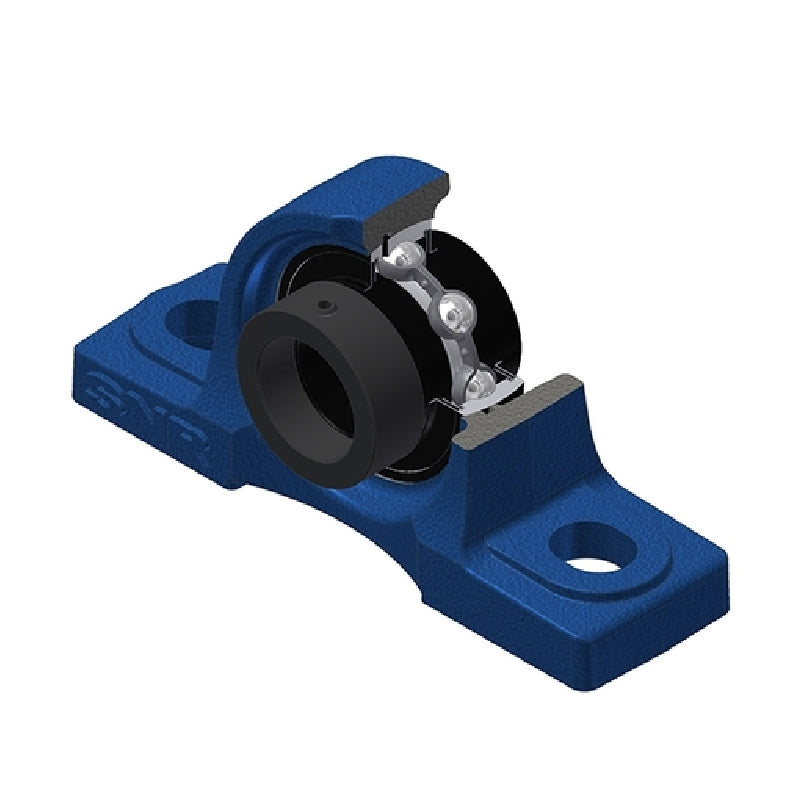

SNR EXP205T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days

SNR EXP205T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days
Regular price $103.12 ex VAT
Regular price Sale price $103.12 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.82
4+ $73.72
9+ $72.17
19+ $69.84
49+ $68.29
99+ $64.41
499+ $54.32
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 25mm
A 38mm
A1 26mm
B 34.8mm
d1 37.4mm
H 36.5mm
H1 16mm
H2 70mm
J 105mm
L 140mm
L1 42mm
N 13mm
N1 19mm
S 17.4mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.85 kg
