SKU: EXP206COE-SNR

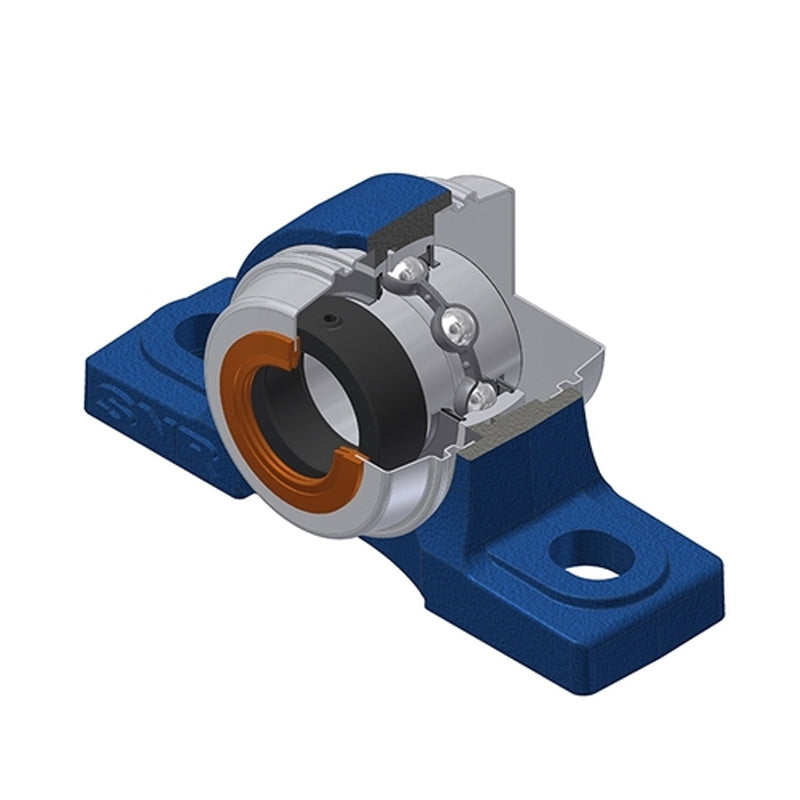

SNR EXP206COE Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days

SNR EXP206COE Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price $103.00 ex VAT
Regular price Sale price $103.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.73
4+ $73.63
9+ $72.08
19+ $69.76
49+ $68.21
99+ $64.33
499+ $54.26
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 30mm
A 48mm
A1 30mm
B 36.4mm
d1 44.1mm
H 42.9mm
H1 18mm
H2 83mm
J 121mm
L 165mm
L1 54mm
N 17mm
N1 21mm
S 18.2mm
Dz 70mm
Z 71.2mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.518 kg
