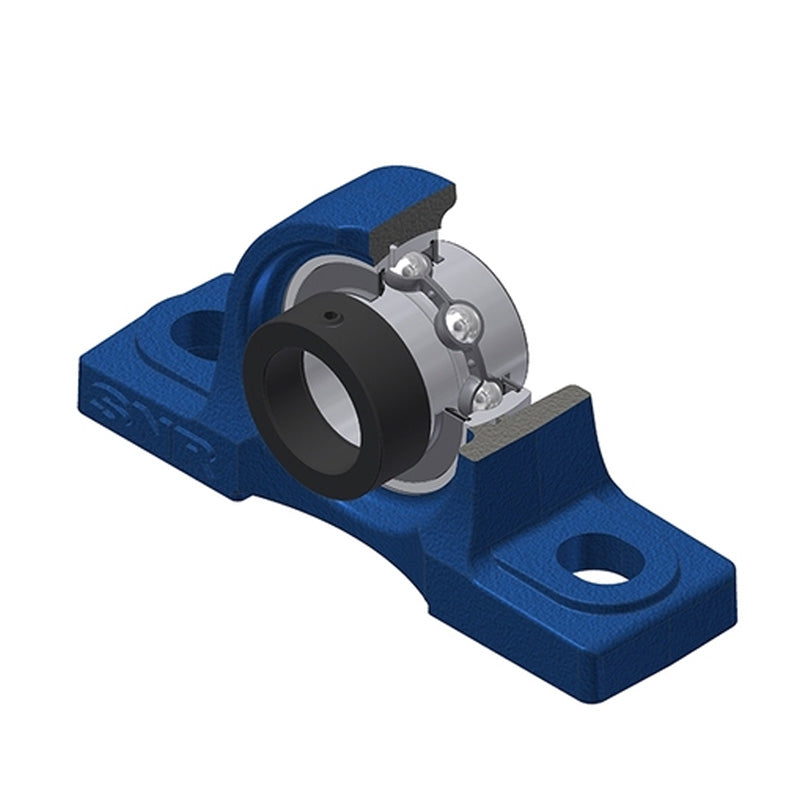

SNR EXP206N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP206N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$73.53
ex VAT
Regular price
Sale price
$73.53
ex VAT
In stock
Price Break
3+
$54.78
4+
$52.56
9+
$51.46
19+
$49.80
49+
$48.69
99+
$45.92
499+
$38.73
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- EXP
- Bolt Hole Centres:
- 121mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 48mm |
| A1 | 30mm |
| B | 36.4mm |
| d1 | 44.1mm |
| H | 42.9mm |
| H1 | 18mm |
| H2 | 83mm |
| J | 121mm |
| L | 165mm |
| L1 | 54mm |
| N | 17mm |
| N1 | 21mm |
| S | 18.2mm |
| Dz | mm |
| Z | mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.41 kg |
