SKU: EXP207COE-SNR

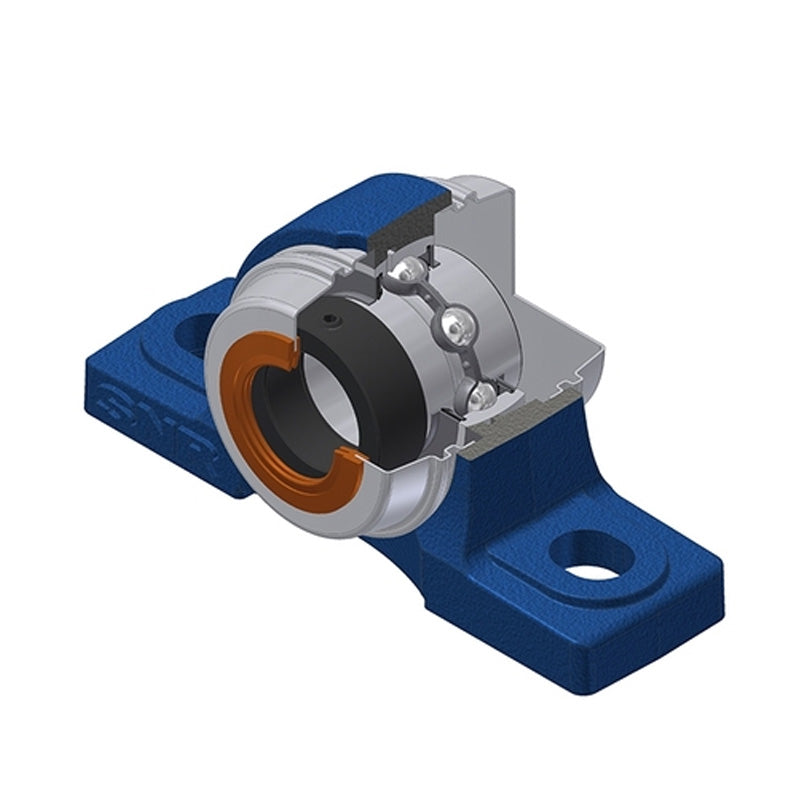

SNR EXP207COE Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days

SNR EXP207COE Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert with Wide Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price $103.06 ex VAT
Regular price Sale price $103.06 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.77
4+ $73.67
9+ $72.12
19+ $69.80
49+ $68.24
99+ $64.37
499+ $54.29
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 48mm
A1 31mm
B 37.6mm
d1 51.1mm
H 47.6mm
H1 19mm
H2 94mm
J 127mm
L 167mm
L1 54mm
N 17mm
N1 21mm
S 18.8mm
Dz 80mm
Z 78.6mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.934 kg
