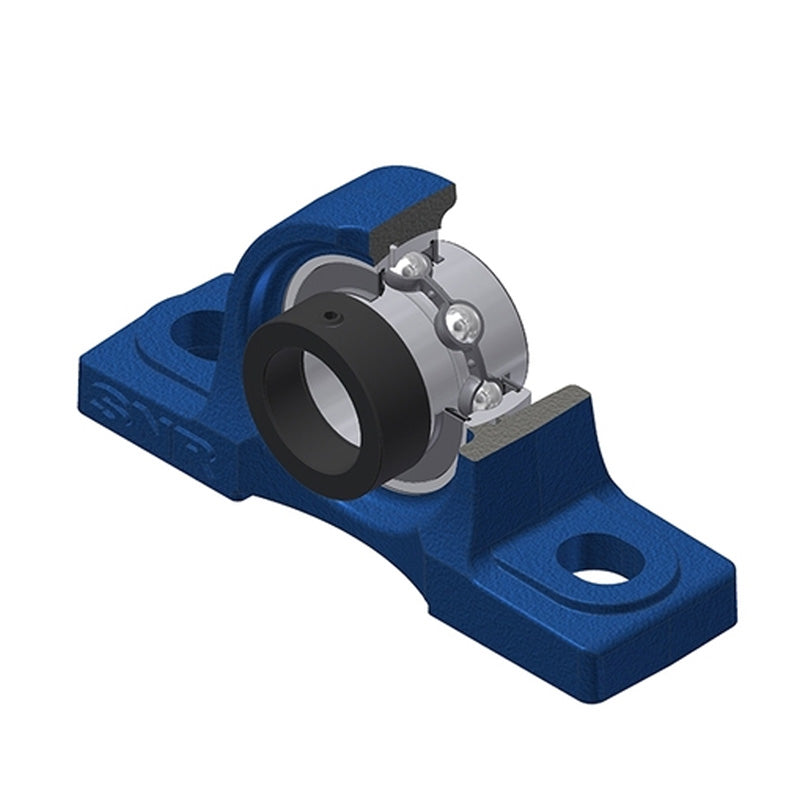

• SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXP208-SNR

SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
$56.35 ex VAT
$56.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $37.75
4+ $35.63
9+ $35.20
19+ $34.78
49+ $34.35
99+ $33.93
499+ $31.81
999+ $31.38
1999+ $30.96
2999+ $30.54
4999+ $29.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXP
Bolt Hole Centres:
137mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 54mm
A1 34mm
B 42.8mm
d1 58mm
H 49.2mm
H1 19mm
H2 100mm
J 137mm
L 184mm
L1 52mm
N 17mm
N1 23mm
S 21.4mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.28 kg
