SKU: EXP209N-SNR

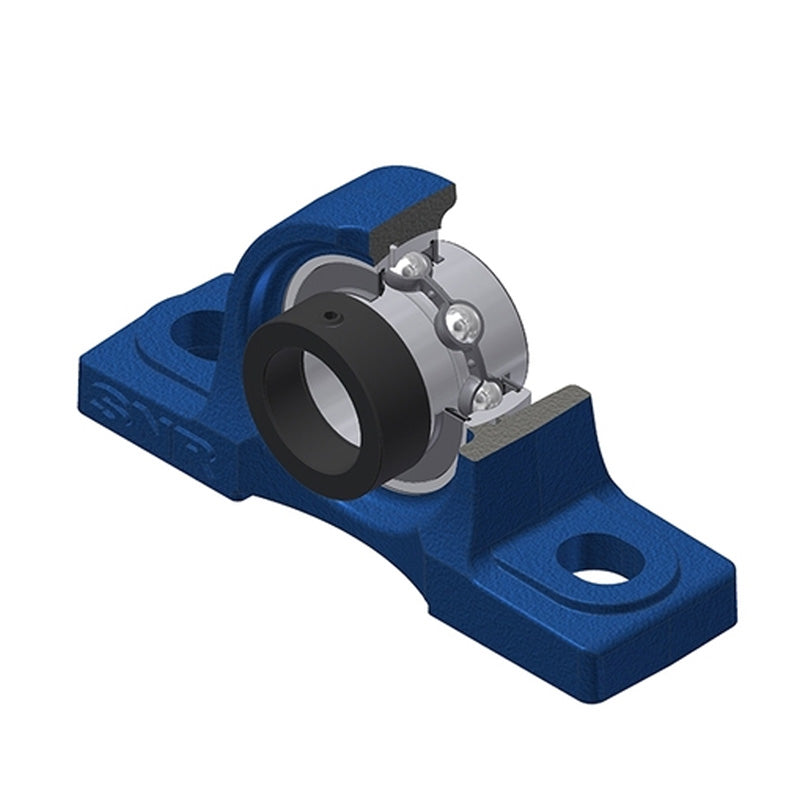

SNR EXP209N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP209N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $88.37 ex VAT
Regular price Sale price $88.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.84
4+ $63.18
9+ $61.85
19+ $59.85
49+ $58.52
99+ $55.20
499+ $46.55
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 45mm
A 54mm
A1 37mm
B 42.8mm
d1 62mm
H 54mm
H1 20mm
H2 108mm
J 146mm
L 190mm
L1 60mm
N 17mm
N1 23mm
S 21.4mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.47 kg
