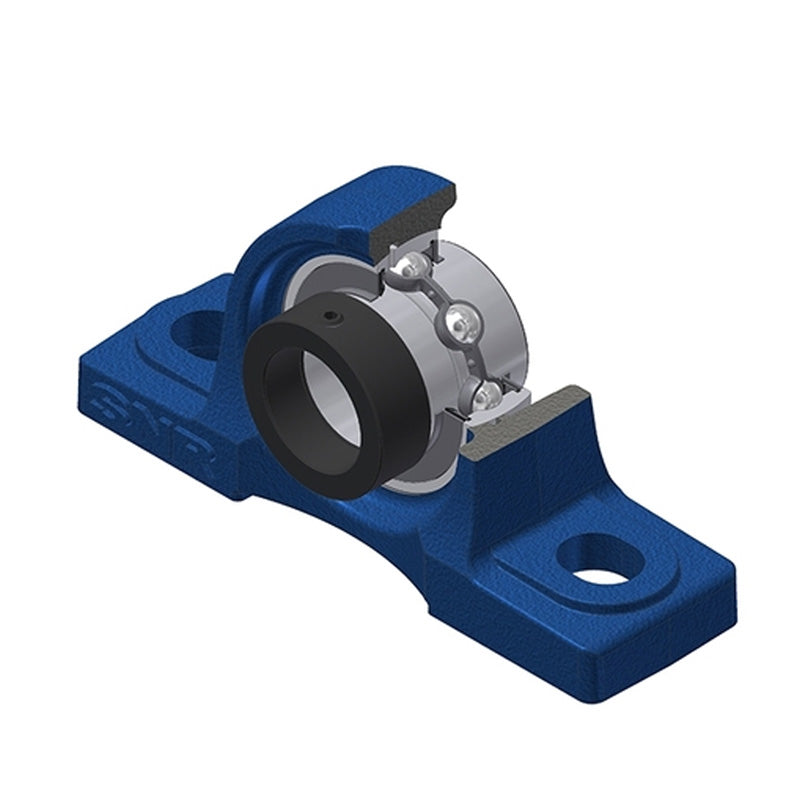

• SNR EXP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXP211-32-SNR

SNR EXP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Eccentric Collar Insert - Allow 2-3 Days

SNR EXP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Eccentric Collar Insert - Allow 2-3 Days
$84.53 ex VAT
$84.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $56.62
4+ $53.44
9+ $52.80
19+ $52.17
49+ $51.53
99+ $50.89
499+ $47.71
999+ $47.08
1999+ $46.44
2999+ $45.80
4999+ $44.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50.8mm = 2 Inch
Style:
EXP
Bolt Hole Centres:
171mm
Technical
--- Dimensions
Shaft diameter d 2 inch
A 60mm
A1 40mm
B 55.4mm
d1 74.5mm
H 63.5mm
H1 22mm
H2 126mm
J 171mm
L 219mm
L1 70mm
N 20mm
N1 25mm
S 27.7mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 4.18 kg
