SKU: EXP212N-SNR

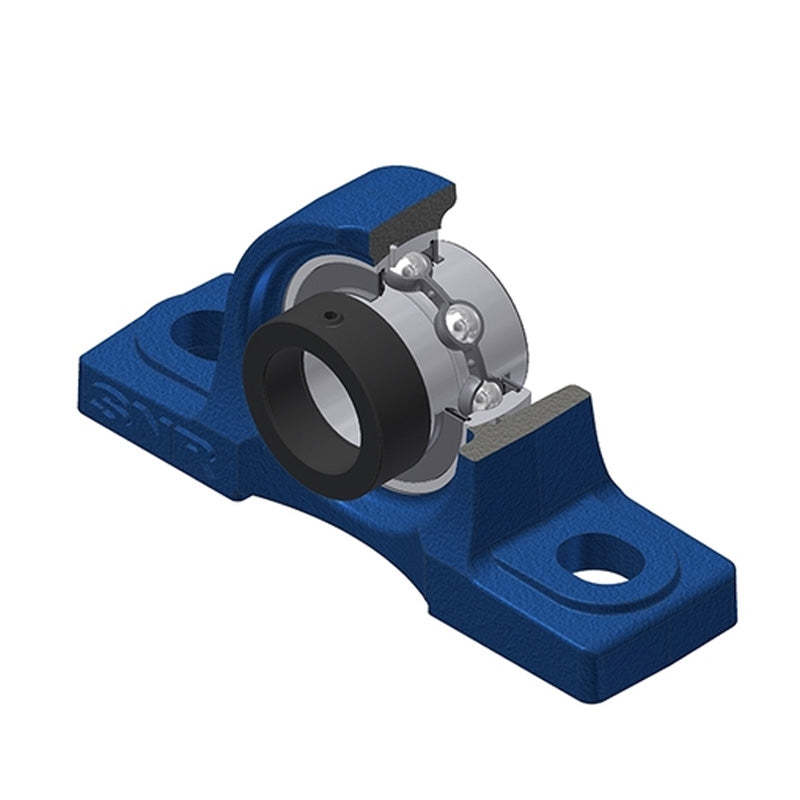

SNR EXP212N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP212N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $176.64 ex VAT
Regular price Sale price $176.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.59
4+ $126.27
9+ $123.62
19+ $119.63
49+ $116.97
99+ $110.32
499+ $93.04
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 44mm
B 61.8mm
d1 82mm
H 69.8mm
H1 25mm
H2 138mm
J 184mm
L 241mm
L1 70mm
N 20mm
N1 25mm
S 30.9mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.27 kg
