SKU: EXP218-SNR

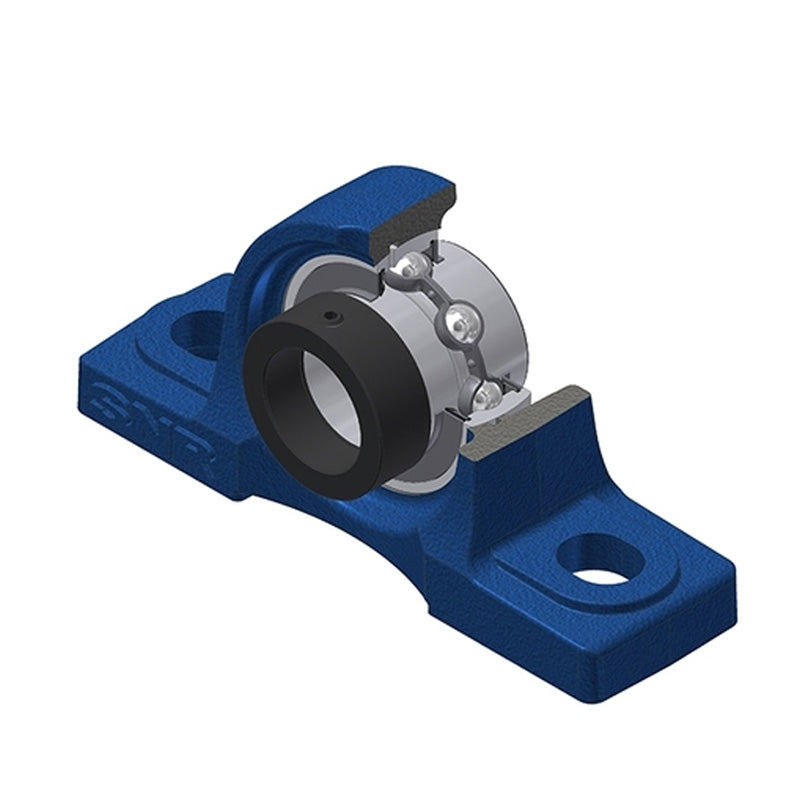

SNR EXP218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$515.35
ex VAT
Regular price
Sale price
$515.35
ex VAT
In stock
Price Break
3+
$383.92
4+
$368.41
9+
$360.65
19+
$349.02
49+
$341.26
99+
$321.87
499+
$271.46
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- EXP
- Bolt Hole Centres:
- 262mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 88mm |
| A1 | 55mm |
| B | 55mm |
| d1 | 120mm |
| H | 101.6mm |
| H1 | 34mm |
| H2 | 200mm |
| J | 262mm |
| L | 327mm |
| L1 | 100mm |
| N | 27mm |
| N1 | 33mm |
| S | 24.5mm |
| Dz | mm |
| Z | mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 13.9 kg |
