SKU: EXP307-SNR

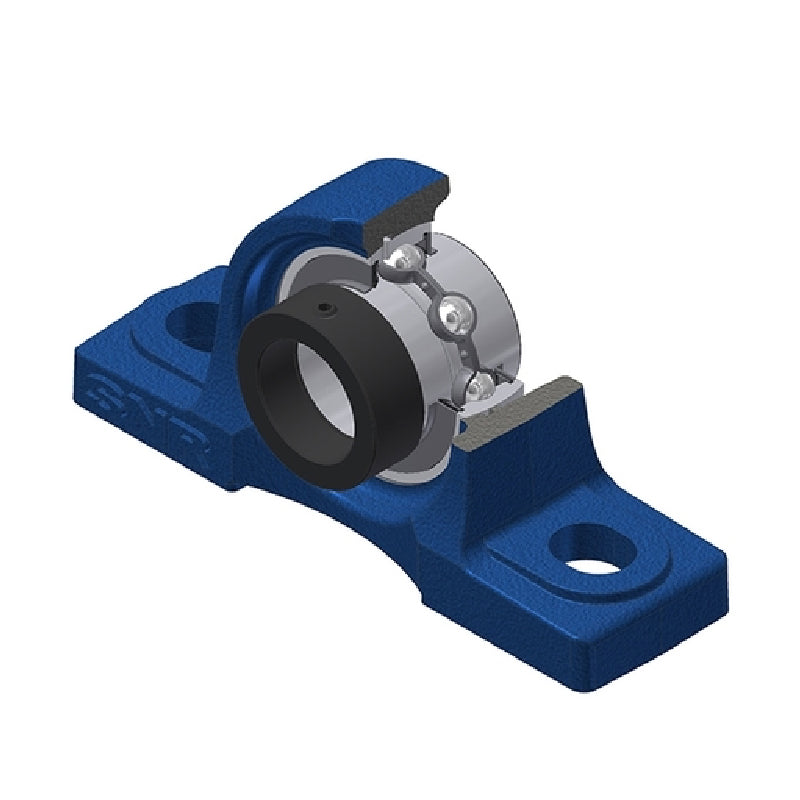

SNR EXP307 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP307 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $103.02 ex VAT
Regular price Sale price $103.02 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.74
4+ $73.64
9+ $72.09
19+ $69.77
49+ $68.22
99+ $64.34
499+ $54.26
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 56mm
A1 38mm
B 38.1mm
d1 55mm
H 56mm
H1 20mm
H2 106mm
J 160mm
L 210mm
L1 60mm
N 17mm
N1 25mm
S 18.3mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 33.5 kN
Static load C0 19.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.7 kg
