SKU: EXP308-SNR

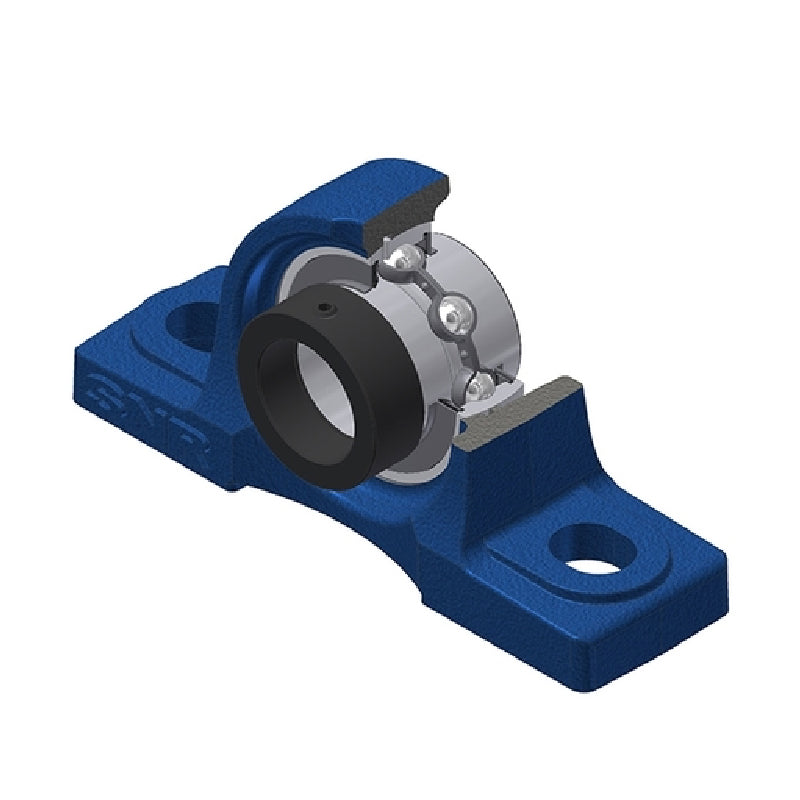

SNR EXP308 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP308 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$117.78
ex VAT
Regular price
Sale price
$117.78
ex VAT
In stock
Price Break
3+
$87.74
4+
$84.20
9+
$82.43
19+
$79.77
49+
$77.99
99+
$73.56
499+
$62.04
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXP
- Bolt Hole Centres:
- 170mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 60mm |
| A1 | 42mm |
| B | 41.3mm |
| d1 | 63.5mm |
| H | 60mm |
| H1 | 22mm |
| H2 | 116mm |
| J | 170mm |
| L | 220mm |
| L1 | 60mm |
| N | 17mm |
| N1 | 27mm |
| S | 19.8mm |
| Dz | mm |
| Z | mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 40.56 kN |
| Static load C0 | 24 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.48 kg |
