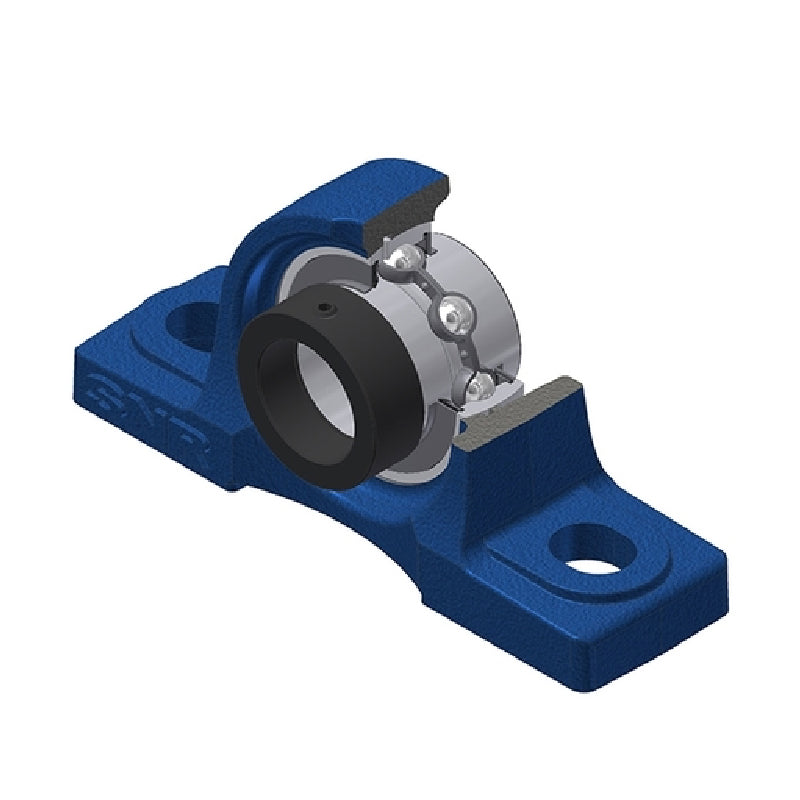

• SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXP310-SNR

SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP310 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
$115.26 ex VAT
$115.26 ex VAT
Sale Sold out

In stock

Price Break
3+ $77.21
4+ $72.87
9+ $72.00
19+ $71.14
49+ $70.27
99+ $69.40
499+ $65.06
999+ $64.20
1999+ $63.33
2999+ $62.46
4999+ $60.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXP
Bolt Hole Centres:
212mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 75mm
A1 48mm
B 49.2mm
d1 76.2mm
H 75mm
H1 27mm
H2 143mm
J 212mm
L 275mm
L1 75mm
N 20mm
N1 35mm
S 24.6mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 62 kN
Static load C0 37.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 6.36 kg
