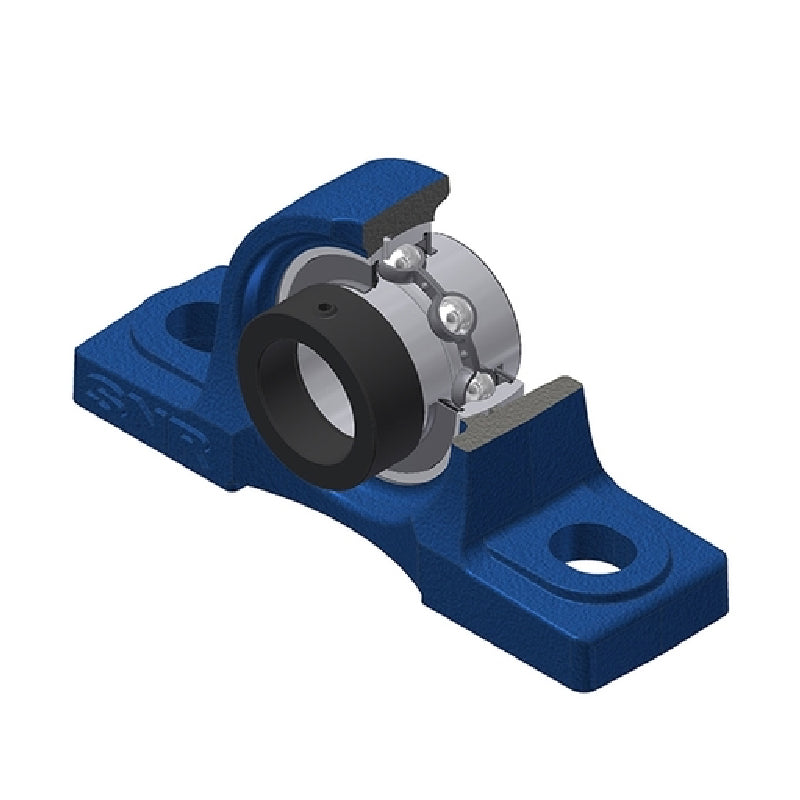

• SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXP311-SNR

SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP311 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
$145.15 ex VAT
$145.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $97.23
4+ $91.76
9+ $90.67
19+ $89.58
49+ $88.49
99+ $87.39
499+ $81.93
999+ $80.84
1999+ $79.75
2999+ $78.65
4999+ $76.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
EXP
Bolt Hole Centres:
236mm
Technical
--- Dimensions
Shaft diameter d 55mm
A 80mm
A1 51mm
B 55.6mm
d1 83mm
H 80mm
H1 30mm
H2 154mm
J 236mm
L 310mm
L1 85mm
N 20mm
N1 38mm
S 27.8mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 71.5 kN
Static load C0 44.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 7.9 kg
