SKU: EXP312-SNR

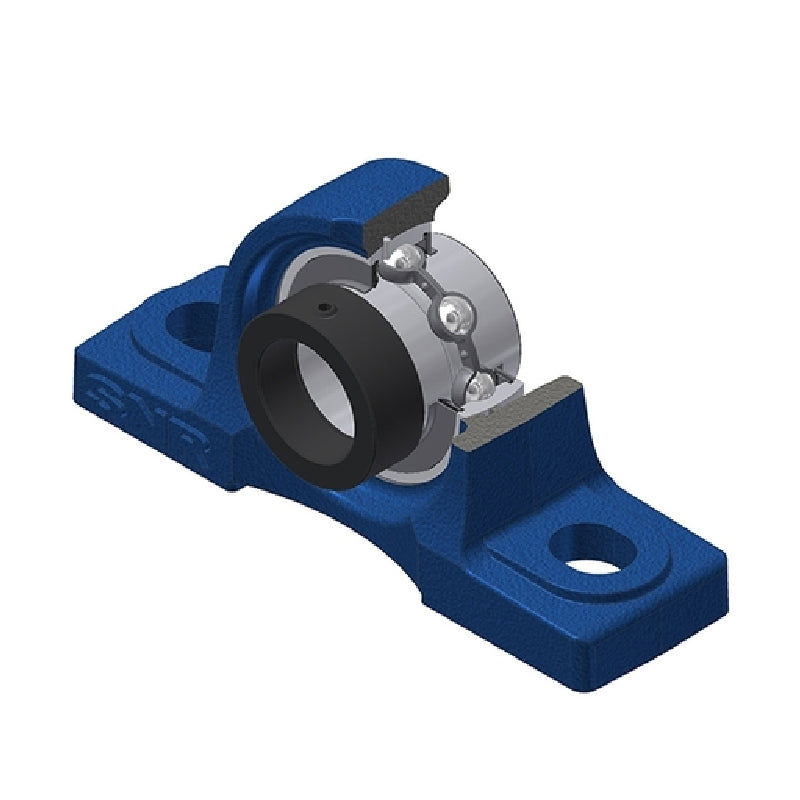

SNR EXP312 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP312 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $265.00 ex VAT
Regular price Sale price $265.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $197.42
4+ $189.44
9+ $185.45
19+ $179.47
49+ $175.48
99+ $165.51
499+ $139.59
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 85mm
A1 54mm
B 61.9mm
d1 89mm
H 85mm
H1 32mm
H2 165mm
J 250mm
L 330mm
L1 95mm
N 25mm
N1 38mm
S 30.95mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 81.6 kN
Static load C0 51.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 9.79 kg
