SKU: EXP316-SNR

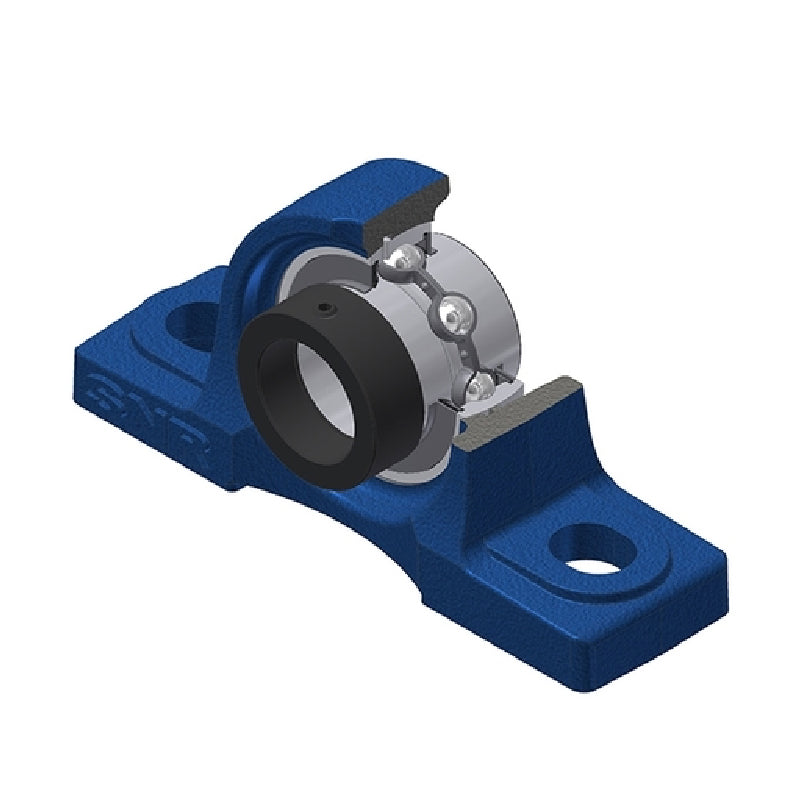

SNR EXP316 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP316 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $588.75 ex VAT
Regular price Sale price $588.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $438.61
4+ $420.89
9+ $412.03
19+ $398.74
49+ $389.88
99+ $367.72
499+ $310.13
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 80mm
A 110mm
A1 66mm
B 81mm
d1 119mm
H 106mm
H1 40mm
H2 210mm
J 300mm
L 400mm
L1 110mm
N 27mm
N1 40mm
S 40.5mm
Dz mm
Z mm
G M10x1
--- Load rating
Dynamic load C 122.85 kN
Static load C0 86.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 64 Nm
Mass 20 kg
