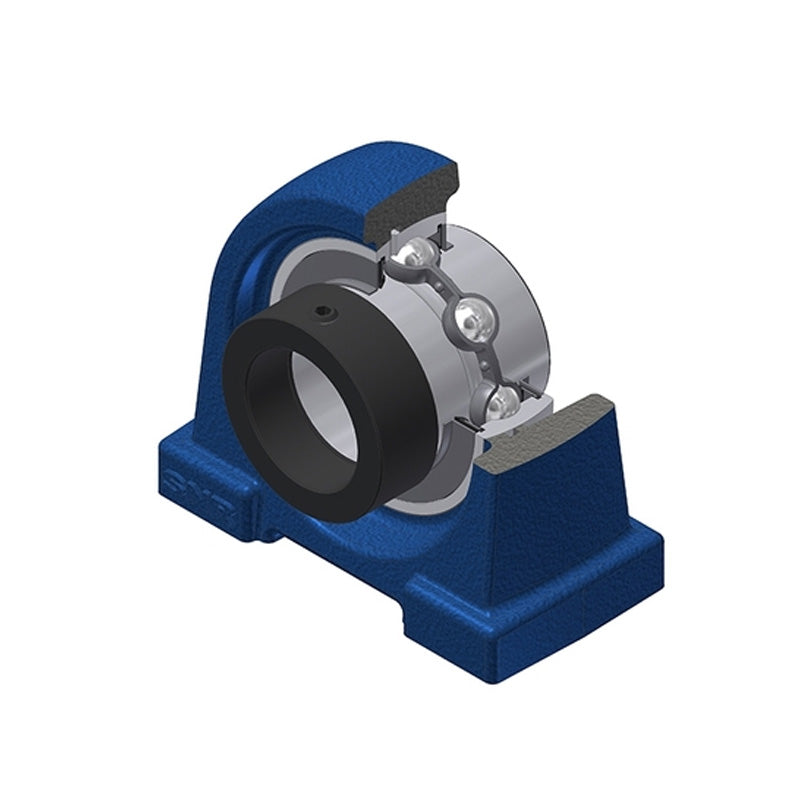

• SNR EXPA201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 12mm Bore - Allow 2-3 Days
1 1

SKU: EXPA201-SNR

SNR EXPA201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 12mm Bore - Allow 2-3 Days

SNR EXPA201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 12mm Bore - Allow 2-3 Days
$41.18 ex VAT
$41.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.68
4+ $29.44
9+ $28.82
19+ $27.89
49+ $27.27
99+ $25.72
499+ $21.69
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
12mm
Style:
EXPA
Bolt Hole Centres:
52mm
Technical

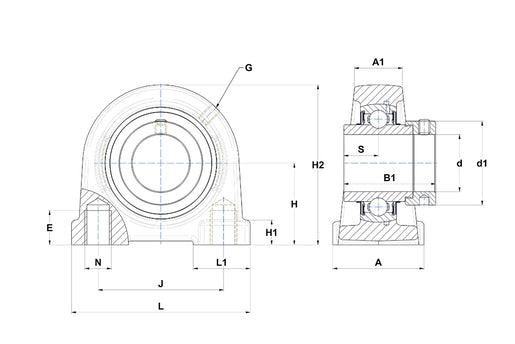

--- Dimensions
Shaft diameter 12mm
A 40mm
A1 22mm
B 34mm
d1 32.4mm
E 13mm
H 30.2mm
H1 11mm
H2 62mm
J 52mm
L 76mm
L1 22mm
N M10
S 17mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.69 kg
