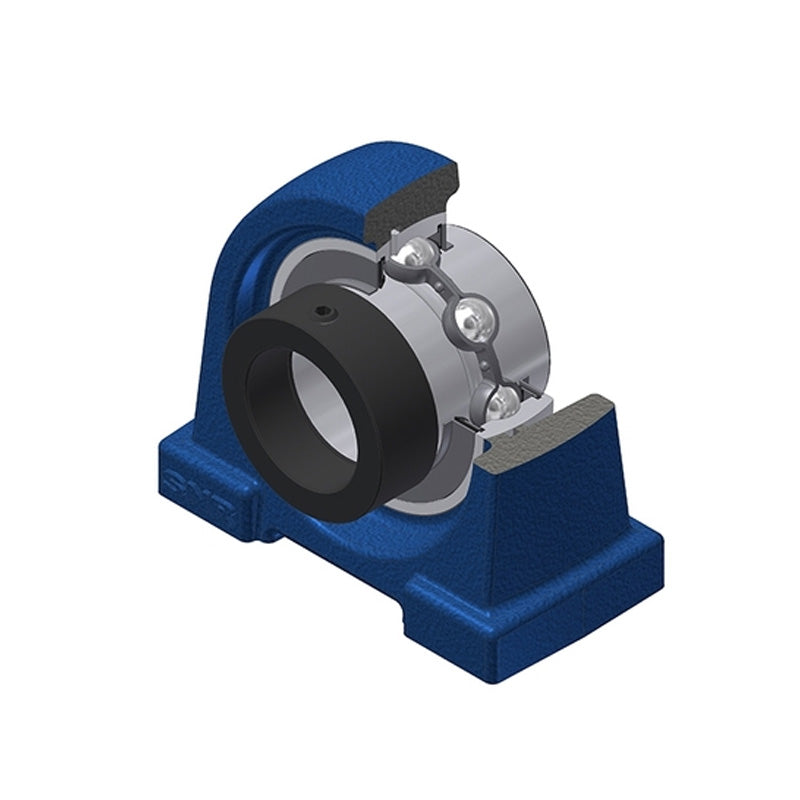

• SNR EXPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
1 1

SKU: EXPA205-SNR

SNR EXPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days

SNR EXPA205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
$41.24 ex VAT
$41.24 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.72
4+ $29.48
9+ $28.86
19+ $27.93
49+ $27.31
99+ $25.75
499+ $21.72
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXPA
Bolt Hole Centres:
56mm
Technical
--- Dimensions
Shaft diameter 25mm
A 38mm
A1 23mm
B 34.8mm
d1 37.4mm
E 15mm
H 36.5mm
H1 12mm
H2 72mm
J 56mm
L 84mm
L1 27mm
N M10
S 17.4mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.75 kg
