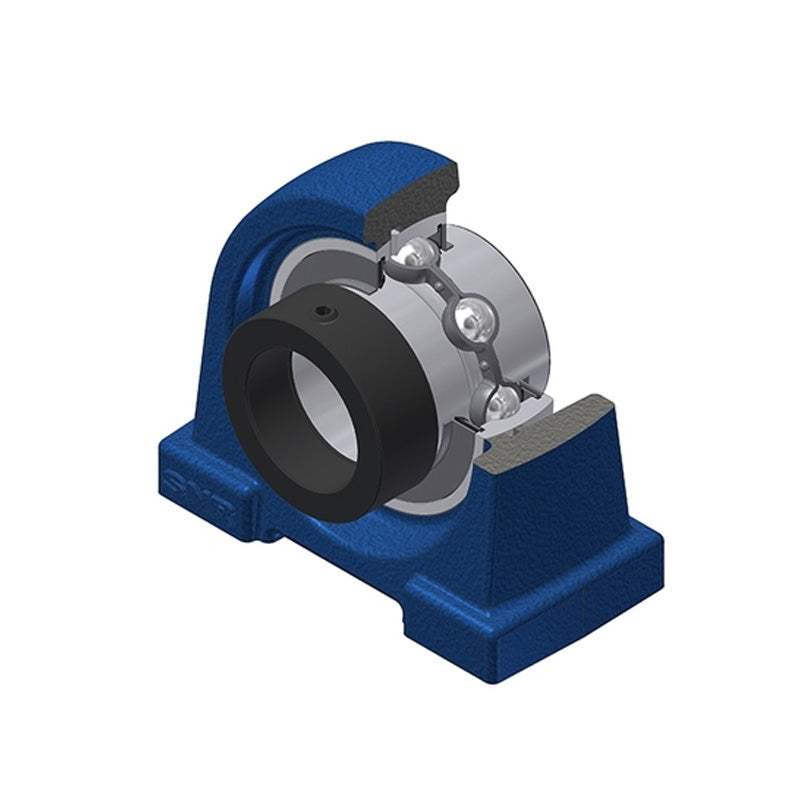

• SNR EXPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
1 1

SKU: EXPA206-SNR

SNR EXPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days

SNR EXPA206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
$53.00 ex VAT
$53.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.48
4+ $37.89
9+ $37.09
19+ $35.89
49+ $35.09
99+ $33.10
499+ $27.92
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
EXPA
Bolt Hole Centres:
66mm
Technical
--- Dimensions
Shaft diameter 30mm
A 48mm
A1 25mm
B 36.4mm
d1 44.1mm
E 18mm
H 42.9mm
H1 13mm
H2 84mm
J 66mm
L 94mm
L1 30mm
N M14
S 18.2mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.21 kg
