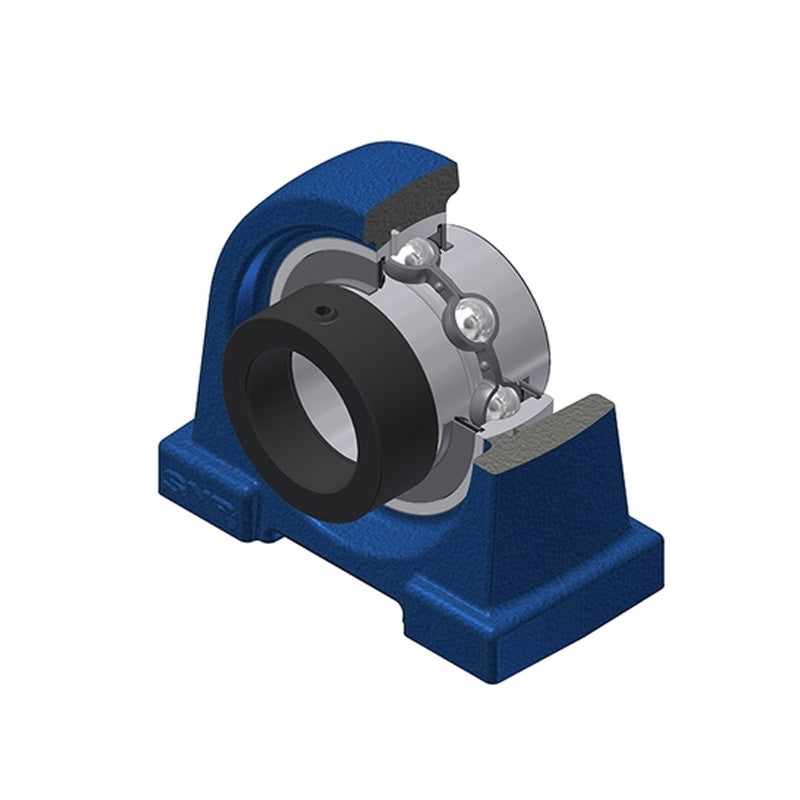

• SNR EXPA207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
1 1

SKU: EXPA207-SNR

SNR EXPA207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days

SNR EXPA207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
$58.90 ex VAT
$58.90 ex VAT
Sale Sold out

In stock

Price Break
3+ $43.88
4+ $42.10
9+ $41.22
19+ $39.89
49+ $39.00
99+ $36.79
499+ $31.02
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
EXPA
Bolt Hole Centres:
80mm
Technical
--- Dimensions
Shaft diameter 35mm
A 48mm
A1 27mm
B 37.6mm
d1 51.1mm
E 20mm
H 47.6mm
H1 13mm
H2 95mm
J 80mm
L 110mm
L1 30mm
N M14
S 18.8mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.6 kg
