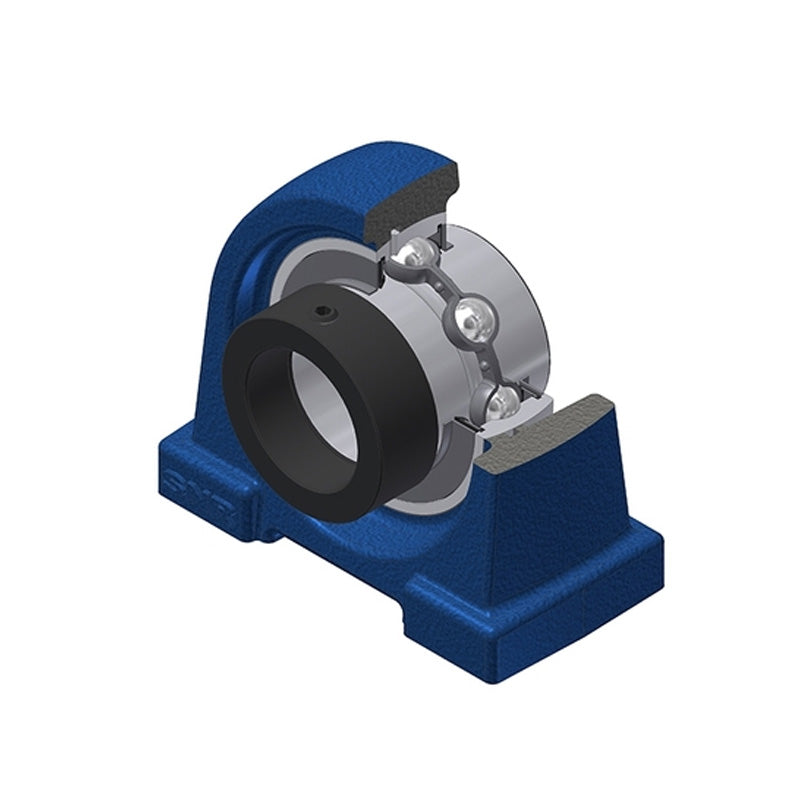

• SNR EXPA211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
1 1

SKU: EXPA211-SNR

SNR EXPA211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days

SNR EXPA211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
$117.79 ex VAT
$117.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.75
4+ $84.21
9+ $82.44
19+ $79.78
49+ $78.00
99+ $73.57
499+ $62.05
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
EXPA
Bolt Hole Centres:
104mm
Technical
--- Dimensions
Shaft diameter 55mm
A 66mm
A1 33mm
B 55.4mm
d1 74.5mm
E 25mm
H 63.5mm
H1 14mm
H2 125mm
J 104mm
L 140mm
L1 47mm
N M16
S 27.7mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 3.49 kg
