• SNR EXPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
1 1

SKU: EXPA212-SNR

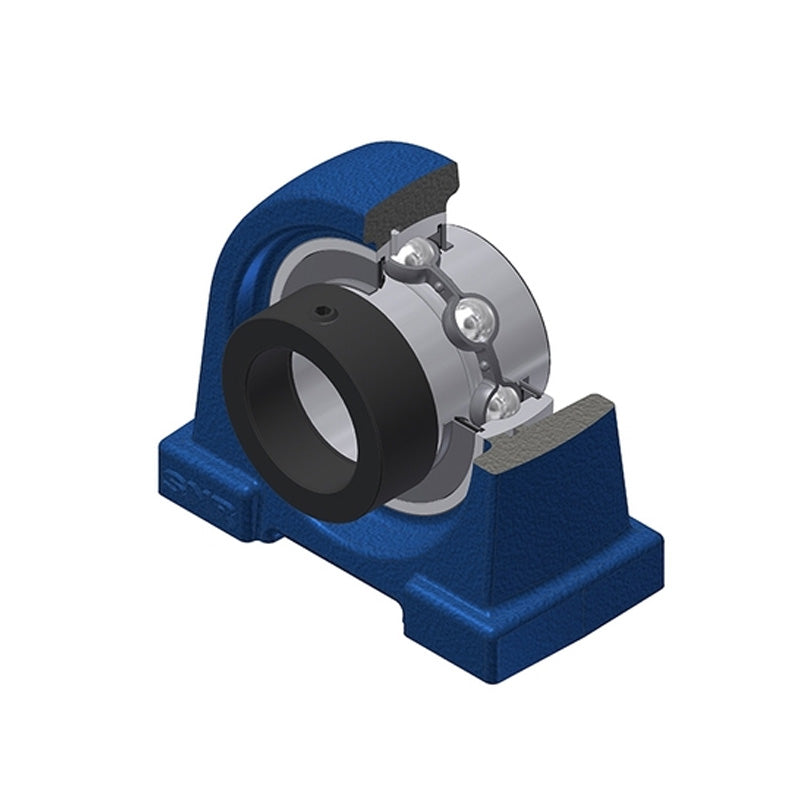

SNR EXPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days

SNR EXPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
$176.57 ex VAT
$176.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.54
4+ $126.23
9+ $123.57
19+ $119.58
49+ $116.93
99+ $110.28
499+ $93.01
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
EXPA
Bolt Hole Centres:
114mm
Technical
--- Dimensions
Shaft diameter 60mm
A 68mm
A1 36mm
B 61.8mm
d1 82mm
E 25mm
H 69.9mm
H1 15mm
H2 138mm
J 114mm
L 150mm
L1 52mm
N M16
S 30.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 4.57 kg
