• SNR EXPAE205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore
  • SNR
1 2

SKU: EXPAE205-SNR

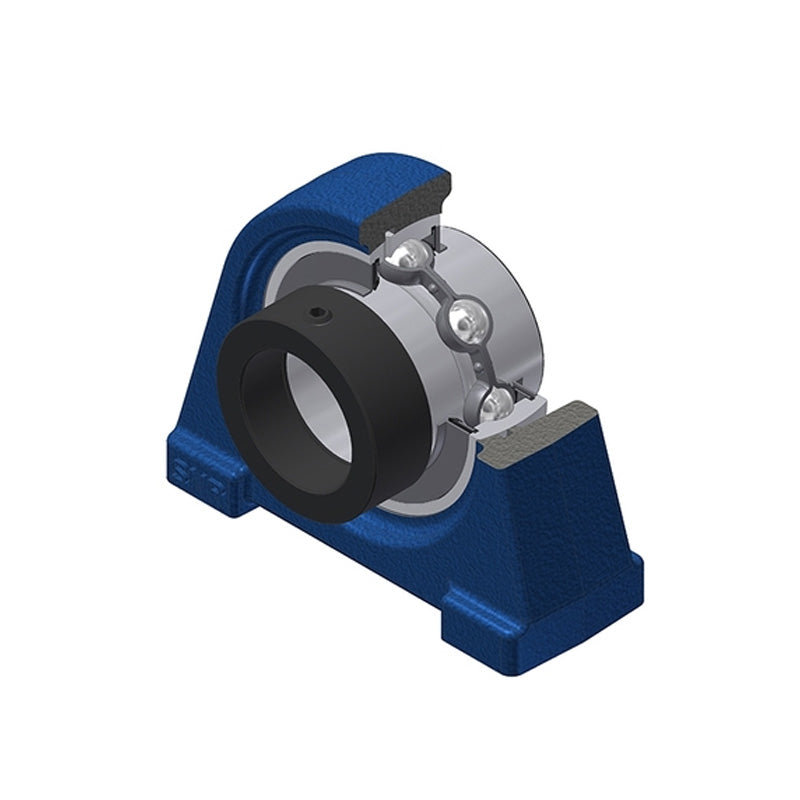

SNR EXPAE205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore

SNR EXPAE205 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 25mm Bore
$37.00 ex VAT
$37.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.78
4+ $23.39
9+ $23.11
19+ $22.83
49+ $22.56
99+ $22.28
499+ $20.88
999+ $20.61
1999+ $20.33
2999+ $20.05
4999+ $19.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
EXPAE
Bolt Hole Centres:
50.8mm
Technical
--- Dimensions
Shaft diameter 25mm
A 36mm
A1 21mm
B 34.8mm
d1 37.4mm
E 12.5mm
H 36.5mm
H1 10mm
H2 70mm
J 50.8mm
L 70mm
L1 21mm
N M10
S 17.4mm
G R1/8
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.65 kg
