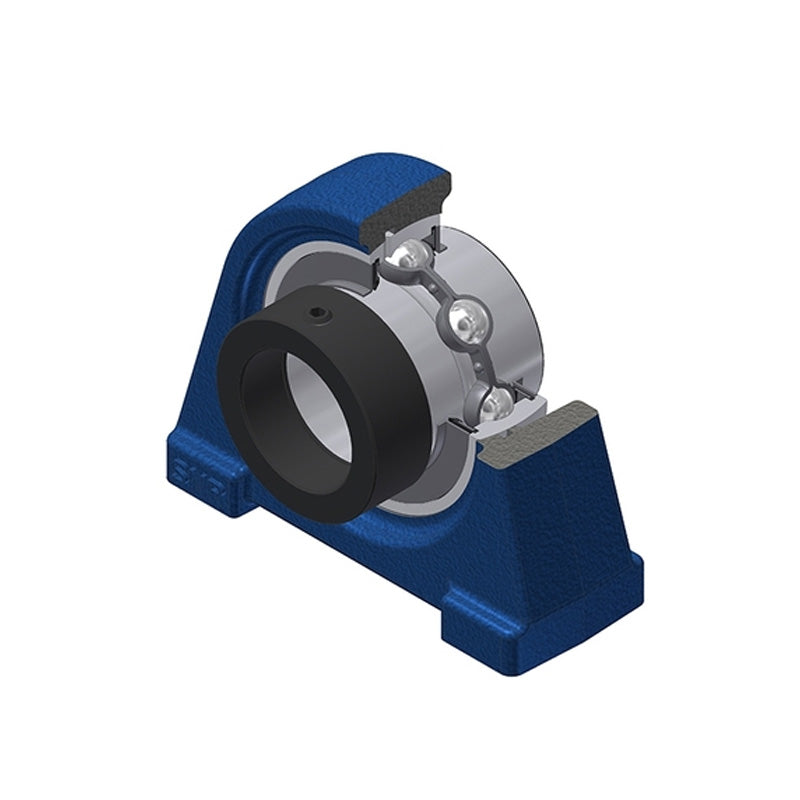

SNR EXPAE207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
SNR EXPAE207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
Regular price
$53.01
ex VAT
Regular price
Sale price
$53.01
ex VAT
In stock
Price Break
3+
$39.49
4+
$37.90
9+
$37.10
19+
$35.90
49+
$35.10
99+
$33.11
499+
$27.92
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- EXPAE
- Bolt Hole Centres:
- 82.6mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 45mm |
| A1 | 27mm |
| B | 37.6mm |
| d1 | 51.1mm |
| E | 12.5mm |
| H | 47.6mm |
| H1 | 12mm |
| H2 | 93mm |
| J | 82.6mm |
| L | 103mm |
| L1 | 22.5mm |
| N | M10 |
| S | 18.8mm |
| G | R1/8 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.5 kg |
