SKU: EXPAE208L3-SNR

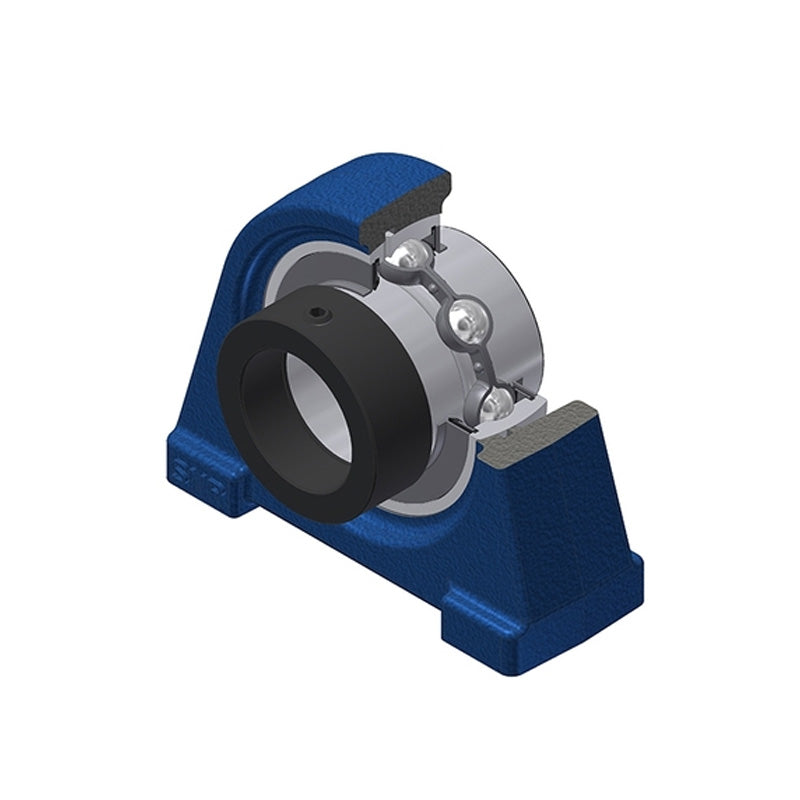

SNR EXPAE208L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore and Triple Lip Seal
SNR EXPAE208L3 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore and Triple Lip Seal
Regular price
$91.57
ex VAT
Regular price
Sale price
$91.57
ex VAT
In stock
Price Break
3+
$61.34
4+
$57.89
9+
$57.20
19+
$56.52
49+
$55.83
99+
$55.14
499+
$51.69
999+
$51.00
1999+
$50.31
2999+
$49.62
4999+
$48.25
Quantity
Couldn't load pickup availability
Description
Description
|
EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXPAE
- Bolt Hole Centres:
- 88.9mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 47mm |
| A1 | 30mm |
| B | 42.8mm |
| d1 | 58mm |
| E | 15mm |
| H | 49.2mm |
| H1 | 13mm |
| H2 | 99mm |
| J | 88.9mm |
| L | 116mm |
| L1 | 27mm |
| N | M12 |
| S | 21.4mm |
| G | R1/8 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.78 kg |
