SKU: EXPE203N-SNR

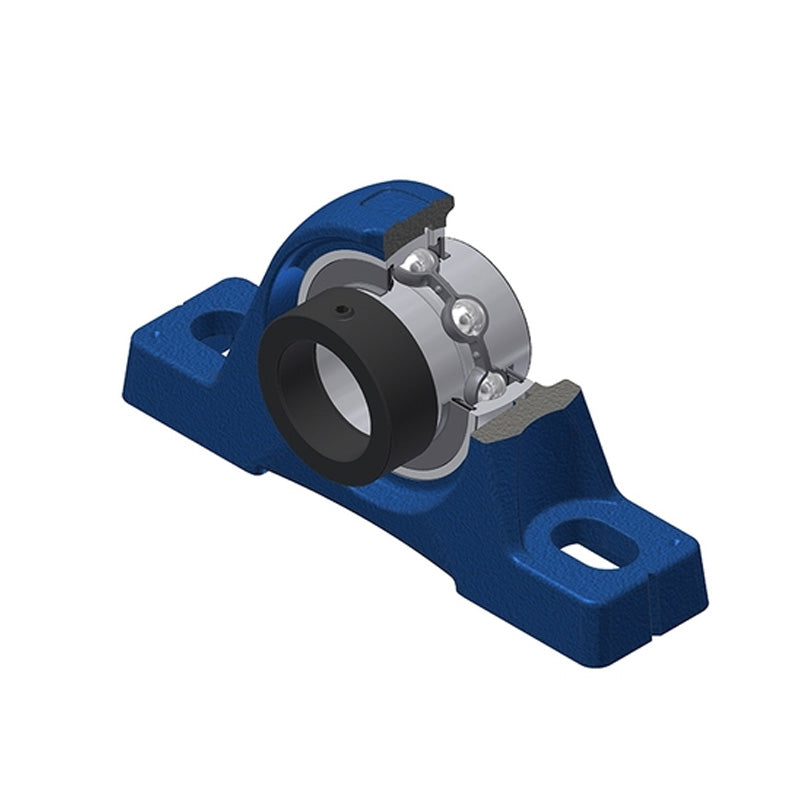

SNR EXPE203N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE203N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $88.34 ex VAT
Regular price Sale price $88.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.82
4+ $63.16
9+ $61.83
19+ $59.83
49+ $58.50
99+ $55.18
499+ $46.54
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 17mm
A 32mm
A1 19mm
B 34mm
d1 32.4mm
H 33.3mm
H1 14.5mm
H2 64mm
J 97mm
L 130mm
L1 40mm
N 11mm
N1 19mm
S 17mm
G R1/8
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.65 kg
