SKU: EXPE207-23-SNR

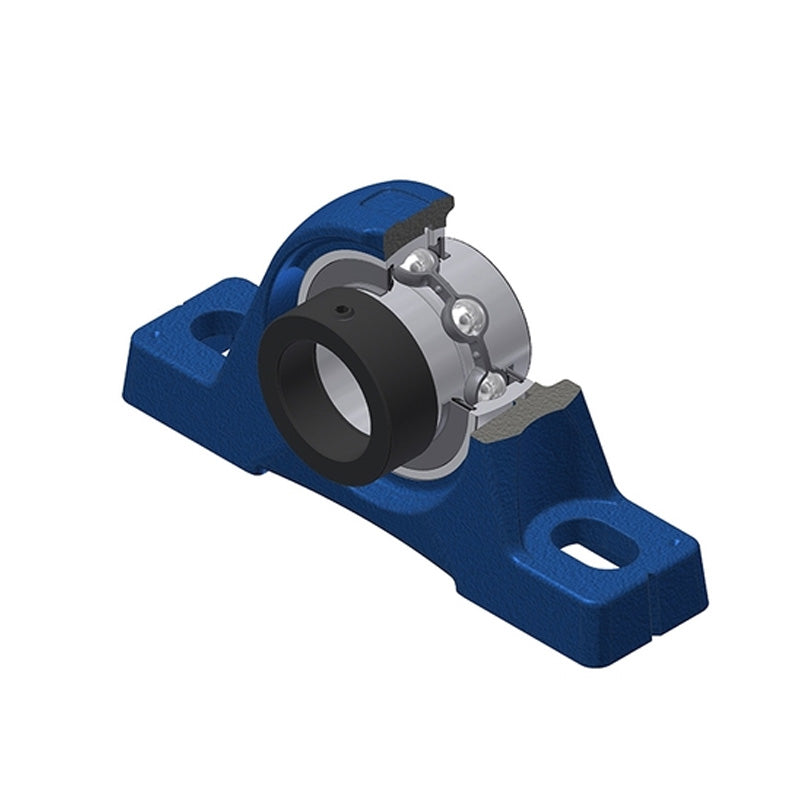

SNR EXPE207-23 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Eccentric Collar Insert - Allow 2-3 Days
SNR EXPE207-23 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-7/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
$53.01
ex VAT
Regular price
Sale price
$53.01
ex VAT
In stock
Price Break
3+
$39.49
4+
$37.90
9+
$37.10
19+
$35.90
49+
$35.10
99+
$33.11
499+
$27.92
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 36.49mm = 1.436 (1-7/16) inch
- Style:
- EXPE
- Bolt Hole Centres:
- 126mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-7/16 inch |
| A | 45mm |
| A1 | 27mm |
| B | 37.6mm |
| d1 | 51.1mm |
| H | 47.6mm |
| H1 | 19mm |
| H2 | 93mm |
| J | 126mm |
| L | 163mm |
| L1 | 49mm |
| N | 14mm |
| N1 | 21mm |
| S | 18.8mm |
| G | R1/8 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.68 kg |
