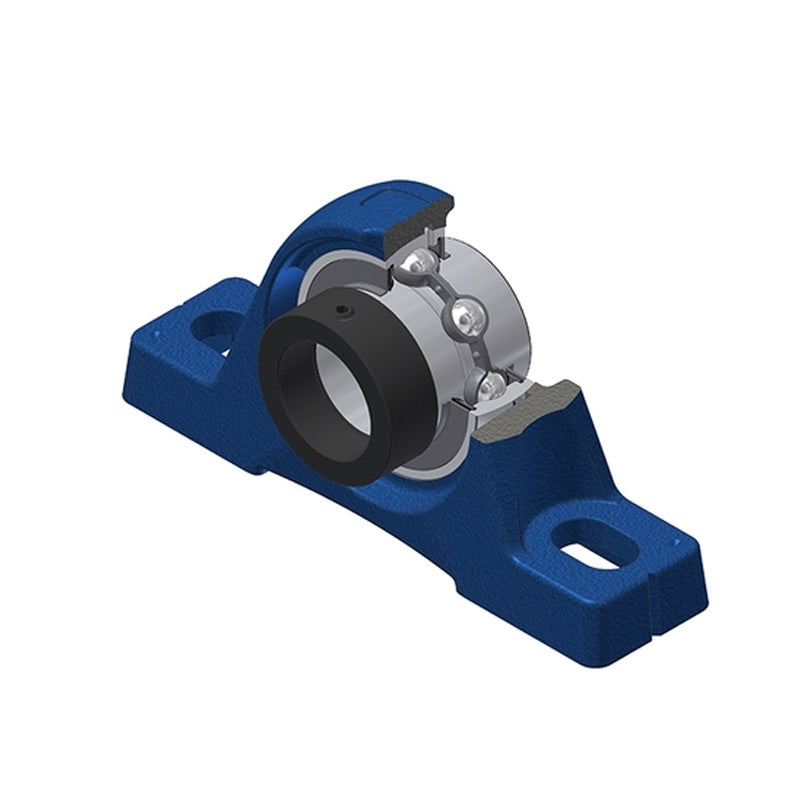

• SNR EXPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXPE207-SNR

SNR EXPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
$45.97 ex VAT
$45.97 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.79
4+ $29.06
9+ $28.72
19+ $28.37
49+ $28.02
99+ $27.68
499+ $25.95
999+ $25.60
1999+ $25.26
2999+ $24.91
4999+ $24.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
EXPE
Bolt Hole Centres:
126mm
Technical
--- Dimensions
Shaft diameter 35mm
A 45mm
A1 27mm
B 37.6mm
d1 51.1mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 18.8mm
G R1/8
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.7 kg
