SKU: EXPE207N-SNR

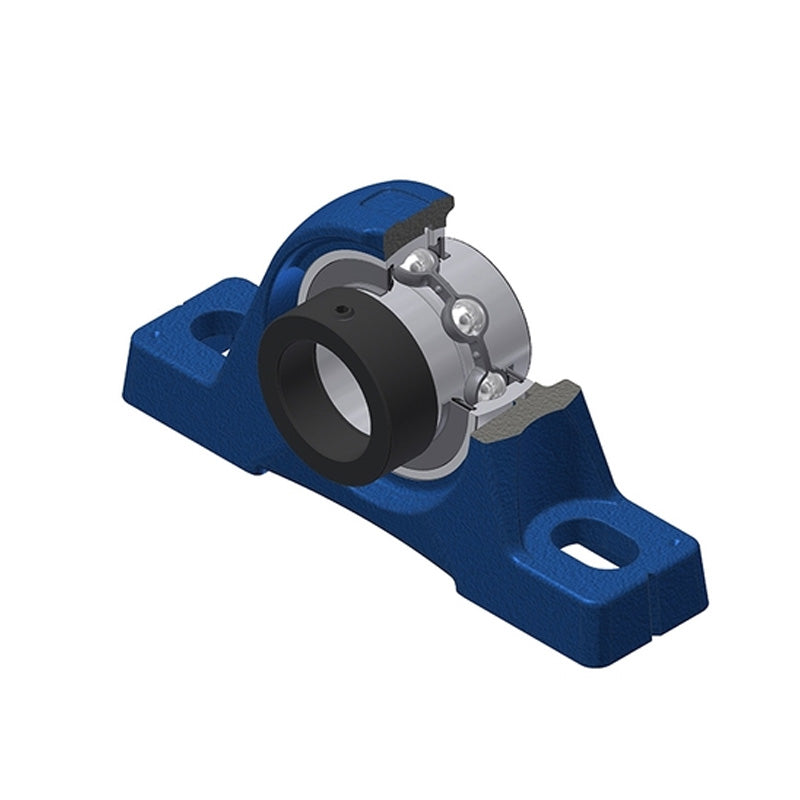

SNR EXPE207N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE207N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price $58.91 ex VAT
Regular price Sale price $58.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $43.89
4+ $42.11
9+ $41.23
19+ $39.90
49+ $39.01
99+ $36.79
499+ $31.03
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 45mm
A1 27mm
B 37.6mm
d1 51.1mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 18.8mm
G R1/8
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.6 kg
