SKU: EXPE208T20-SNR

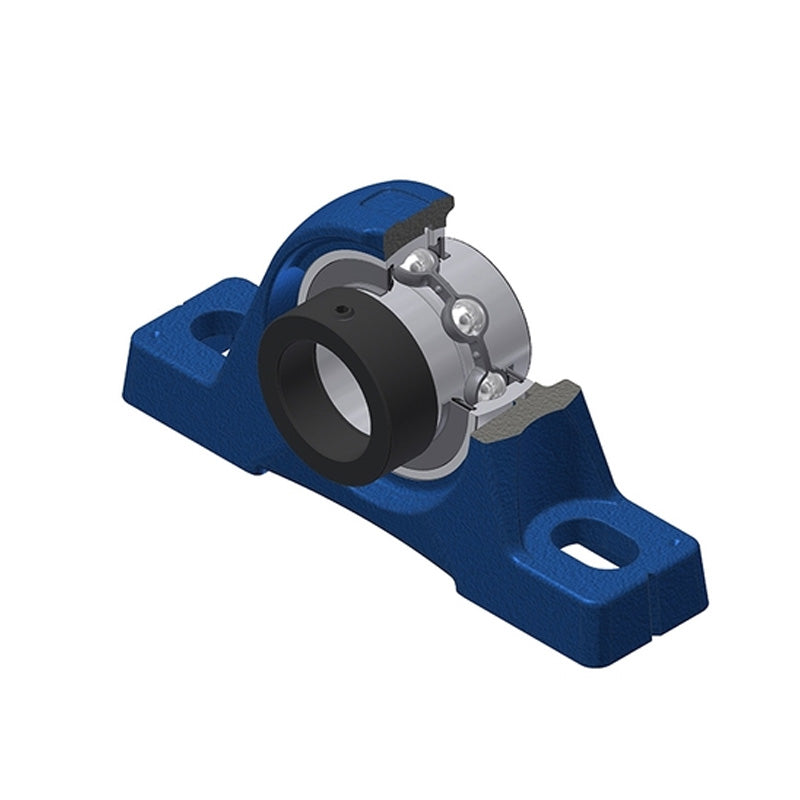

SNR EXPE208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days

SNR EXPE208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days
Regular price $132.58 ex VAT
Regular price Sale price $132.58 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.77
4+ $94.78
9+ $92.79
19+ $89.79
49+ $87.80
99+ $82.81
499+ $69.84
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 40mm
A 48mm
A1 30mm
B 42.8mm
d1 60.3mm
H 49.2mm
H1 19mm
H2 99mm
J 138mm
L 179mm
L1 53mm
N 14mm
N1 26mm
S 21.4mm
G R1/8
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.98 kg
