SKU: EXPE209L3-SNR

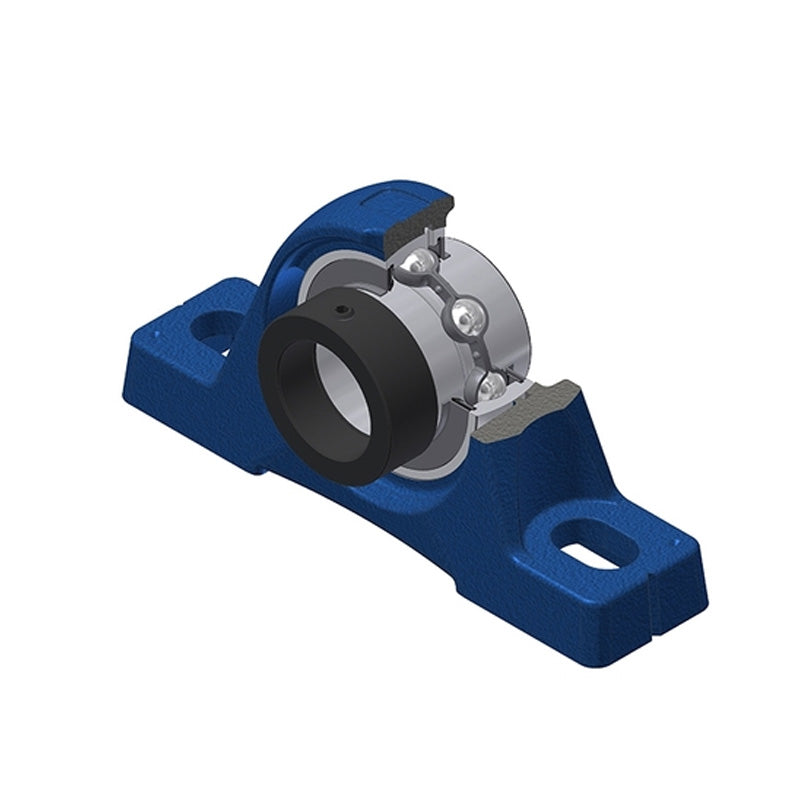

SNR EXPE209L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days

SNR EXPE209L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days
Regular price $88.32 ex VAT
Regular price Sale price $88.32 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.80
4+ $63.14
9+ $61.81
19+ $59.81
49+ $58.48
99+ $55.16
499+ $46.52
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 42.8mm
d1 62mm
H 54mm
H1 21.5mm
H2 107mm
J 150mm
L 192mm
L1 54.5mm
N 14mm
N1 29mm
S 21.4mm
G R1/8
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.37 kg
