SKU: EXPE210-31-SNR

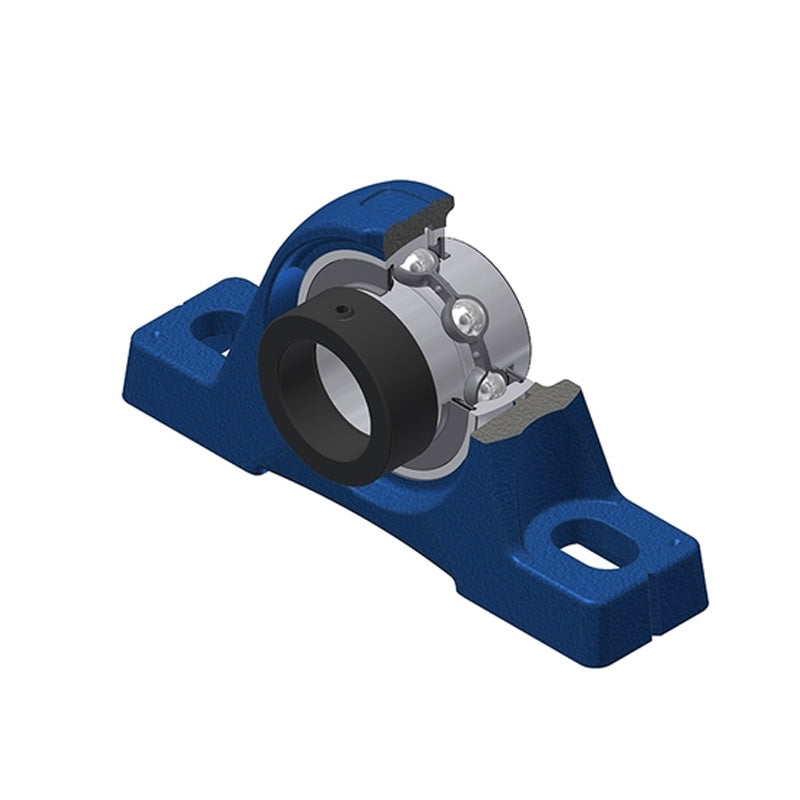

SNR EXPE210-31 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE210-31 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price $88.29 ex VAT
Regular price Sale price $88.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.78
4+ $63.12
9+ $61.79
19+ $59.80
49+ $58.47
99+ $55.15
499+ $46.51
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 1-15/16 inch
A 54mm
A1 34mm
B 49.2mm
d1 67.2mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 24.6mm
G R1/8
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 2.84 kg
