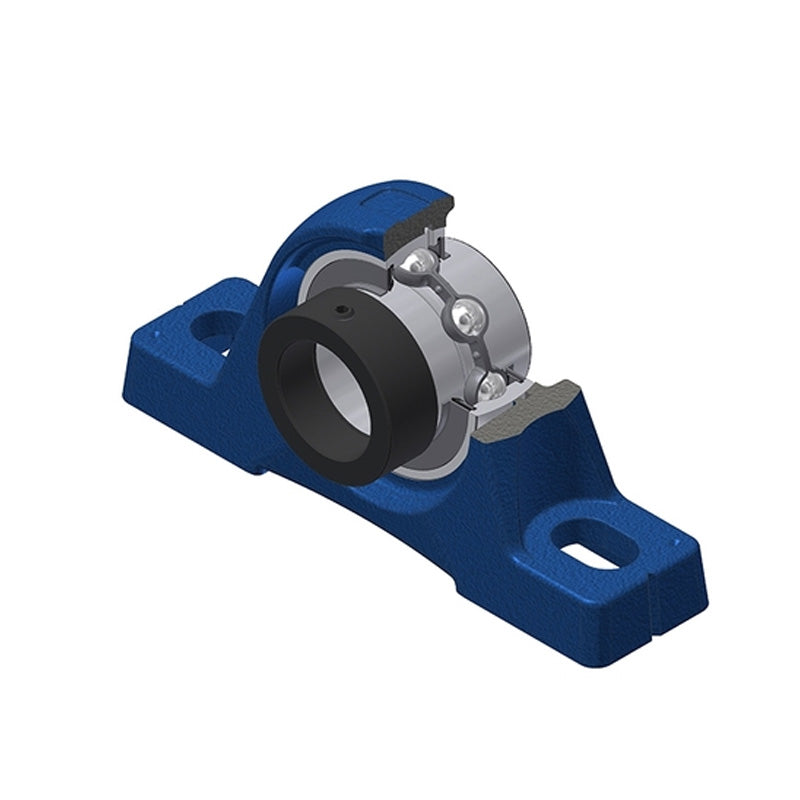

• SNR EXPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR
1 2

SKU: EXPE210-SNR

SNR EXPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
$66.59 ex VAT
$66.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.61
4+ $42.10
9+ $41.60
19+ $41.10
49+ $40.60
99+ $40.10
499+ $37.59
999+ $37.09
1999+ $36.59
2999+ $36.09
4999+ $35.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
EXPE
Bolt Hole Centres:
158mm
Technical
--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 49.2mm
d1 67.2mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 24.6mm
G R1/8
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.81 kg
