SKU: EXPE210L3-SNR

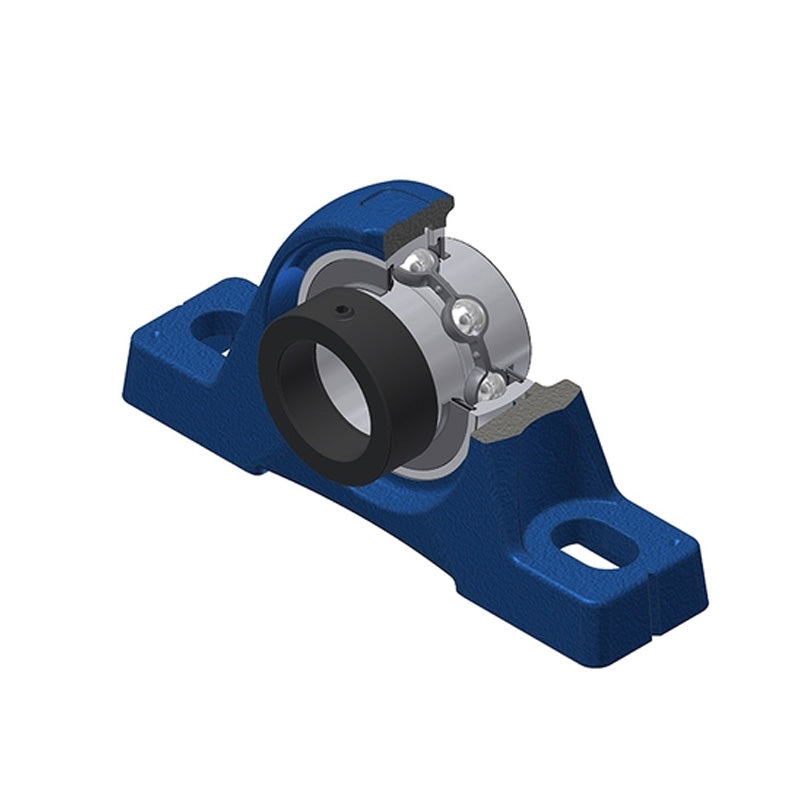

SNR EXPE210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days
SNR EXPE210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
$103.00
ex VAT
Regular price
Sale price
$103.00
ex VAT
In stock
Price Break
3+
$76.73
4+
$73.63
9+
$72.08
19+
$69.76
49+
$68.21
99+
$64.33
499+
$54.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- EXPE
- Bolt Hole Centres:
- 158mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 54mm |
| A1 | 34mm |
| B | 49.2mm |
| d1 | 67.2mm |
| H | 57.2mm |
| H1 | 21.5mm |
| H2 | 115mm |
| J | 158mm |
| L | 200mm |
| L1 | 61mm |
| N | 18mm |
| N1 | 23mm |
| S | 24.6mm |
| G | R1/8 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.81 kg |
